DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825190-7SWITCH SHUNT DIP PROGRAMMABLE |
8,840 | - |
|
Datasheet | 7600 | Tube | Active | Programmable | 8 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
4-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
27,675 | - |
|
Datasheet | ADF | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1-1825059-7SWITCH SLIDE DIP SPST 0.025A 24V |
13,840 | - |
|
Datasheet | ADF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

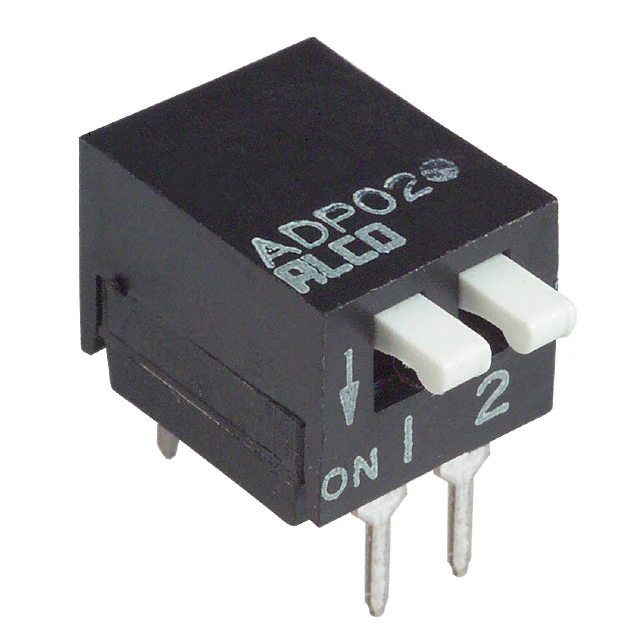

1571999-1SWITCH PIANO DIP SPST 0.025A 24V |
11,556 | - |
|
Datasheet | ADP | Bulk | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
ADE08A04SWITCH SLIDE DIP SPST 0.1A 24V |
773 | - |
|
Datasheet | ADE | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

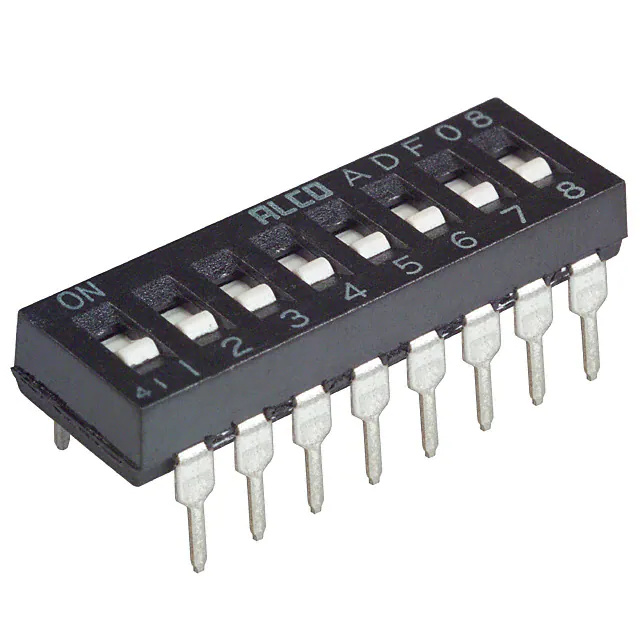

1-1825002-3SWITCH SLIDE DIP SPST 0.025A 24V |
2,252 | - |
|
Datasheet | ADF | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
2-1825059-9SWITCH SLIDE DIP SPST 0.025A 24V |
5,189 | - |
|
Datasheet | ADF | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

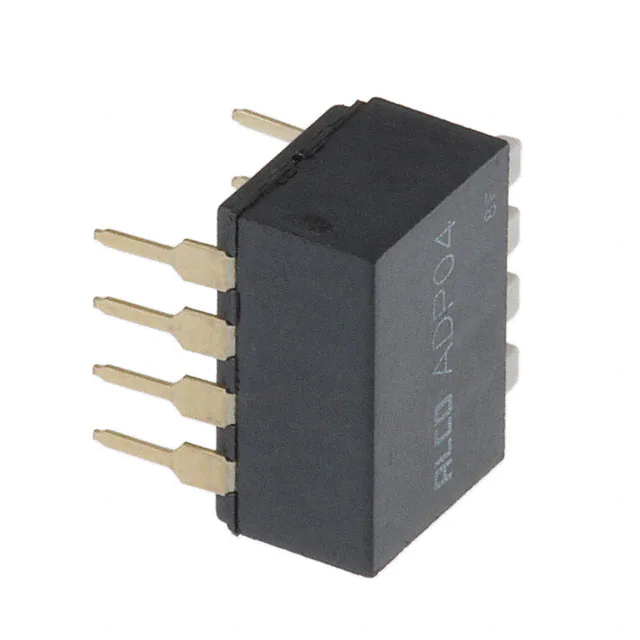

1571999-6SWITCH PIANO DIP SPST 0.025A 24V |
5,859 | - |
|
Datasheet | ADP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1571999-7SWITCH PIANO DIP SPST 0.025A 24V |
3,085 |
1+：$2.16800 10+：$1.82400 35+：$1.64457 105+：$1.50050 280+：$1.38580 525+：$1.31978 1015+：$1.25692 2520+：$1.18077 5005+：$1.13099 |
|
Datasheet | ADP | Bulk | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
ADF05STTR04SWITCH STANDARD DIP SPST |
5,964 | - |
|
Datasheet | ADF | Tape & Reel (TR) | Active | SPST | 5 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
