DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6RV-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
1,832 | - |
|
Datasheet | A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
.jpg)
|

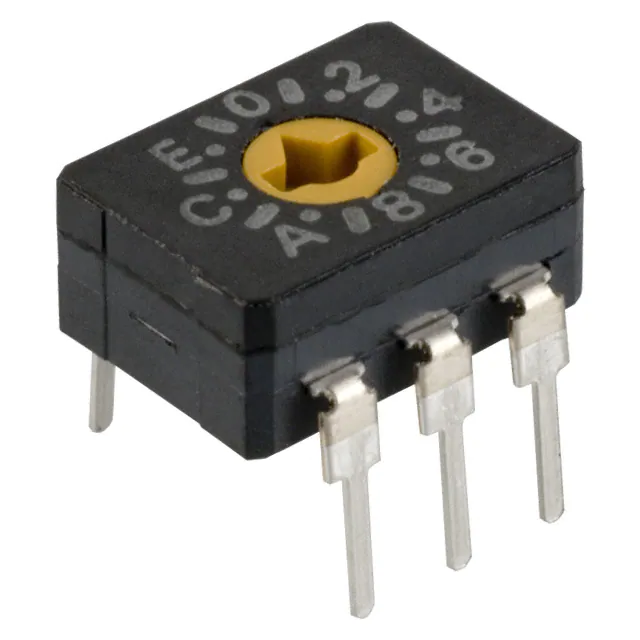

A6C-16R(N)SWITCH ROTARY DIP HEX 0.1A 30V |
9,249 | - |
|
Datasheet | A6C | Bulk | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
A6T-1101SWITCH SLIDE DIP SPST 0.025A 24V |
564 | - |
|
Datasheet | A6T | Tray | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6FR-4101SWITCH PIANO DIP SPST 0.025A 24V |
1,972 | - |
|
Datasheet | A6FR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

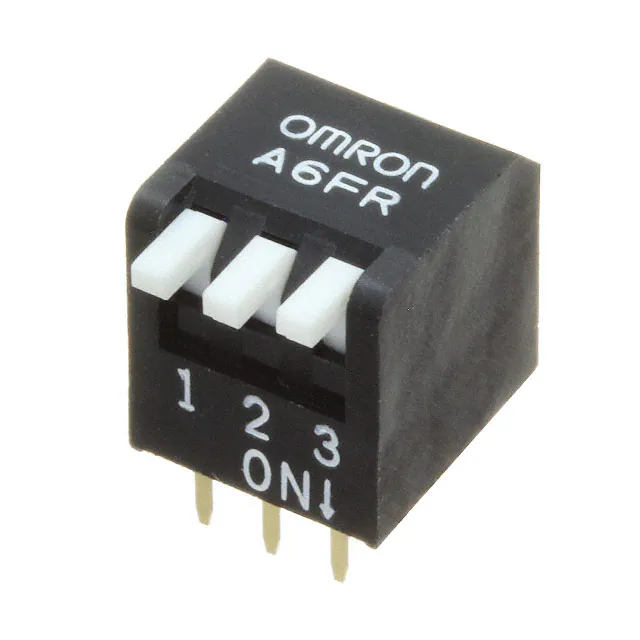

A6FR-3104SWITCH PIANO DIP SPST 0.025A 24V |
1,576 | - |
|
Datasheet | A6FR | Tube | Active | SPST | 3 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6T-1104SWITCH SLIDE DIP SPST 0.025A 24V |
5,042 | - |
|
Datasheet | A6T | Tray | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6FR-6104SWITCH PIANO DIP SPST 0.025A 24V |
303 | - |
|
Datasheet | A6FR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-4101-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,338 | - |
|
Datasheet | A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-2104-HSWITCH DIP SLIDE SPST 25MA 24V |
1,062 |
1+：$1.42400 10+：$1.20320 76+：$1.01800 152+：$0.96090 304+：$0.90800 532+：$0.86854 1064+：$0.82384 2508+：$0.77491 5016+：$0.74032 |
|
Datasheet | A6S-H | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-4102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
726 | - |
|
Datasheet | A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
