DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-8131SW ROTARY DIP OCT COMP 0.1A 5V |
4,771 | - |
|
Datasheet | S-8000 | Bulk | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-8111WSWITCH ROTARY DIP OCTAL 0.1A 5V |
4,392 | - |
|
Datasheet | S-8000 | Tray | Active | Octal | 8 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
RTF10C0SSW ROTARY DIP BCD COMP 0.1A 5VDC |
2,649 | - |
|
Datasheet | RTF | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
97R04TSWITCH SLIDE DIP SPST 0.025A 24V |
3,069 | - |
|
Datasheet | 97 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
1825153-2SWITCH SLIDE DIP SPST 0.4VA 20V |
2,398 | - |
|
Datasheet | SSH | Tube | Obsolete | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
S-1230AWSW ROTARY DIP HEX COMP 0.1A 5V |
1,782 | - |
|
Datasheet | S-1000A | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
S-1210AWSWITCH ROTARY DIP HEX 0.1A 5V |
4,718 | - |
|
Datasheet | S-1000A | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
S-2210AWSWITCH ROTARY DIP BCD 0.1A 5V |
1,245 | - |
|
Datasheet | S-2000A | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
S-2230AWSW ROTARY DIP BCD COMP 0.1A 5V |
3,069 | - |
|
Datasheet | S-2000A | Tray | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2396234-5SWITCH ROTARY DIP 10P VERT TH |
2,612 | - |
|
Datasheet | MRSS | Bulk | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
3-2396234-0SWITCH ROTARY DIP 16P VERT TH |
2,854 | - |
|
Datasheet | MRSS | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2-2396234-5SWITCH ROTARY DIP 10P VERT TH |
1,433 | - |
|
Datasheet | MRSS | Bulk | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

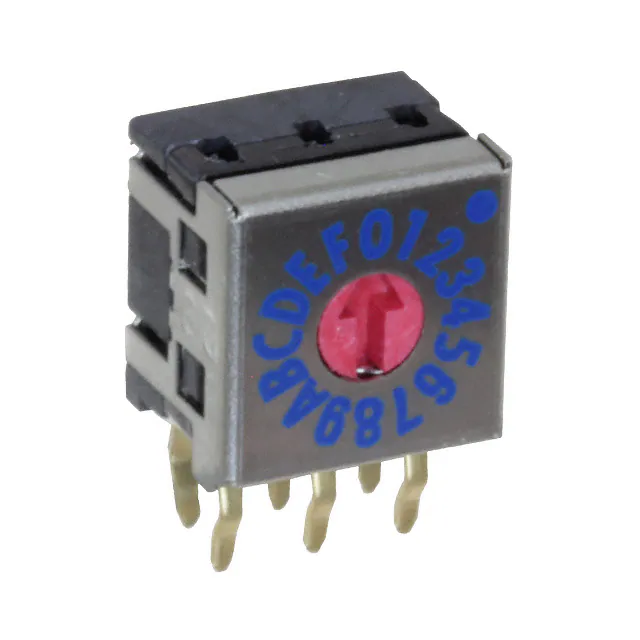

DRR7116CSW ROTARY DIP HEX COMP 0.03A 15V |
1,604 | - |
|
Datasheet | DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
90HBJ02PRTSWITCH SLIDE DIP SPST 0.025A 24V |
2,722 | - |
|
Datasheet | 90HB | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
PT65SG126DIP ROTARY SWITCH P60 10MM |
3,800 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A6SN-7101SWITCH SLIDE DIP SPST 0.025A 24V |
1,835 | - |
|
Datasheet | A6SN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
NDIR12SSWITCH SLIDE DIP SPST 0.025A 24V |
4,773 | - |
|
Datasheet | NDI | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDIR12HSWITCH SLIDE DIP SPST 0.025A 24V |
1,360 | - |
|
Datasheet | NDI | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDI12SSWITCH SLIDE DIP SPST 0.025A 24V |
3,483 | - |
|
Datasheet | NDI | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
90HBW10RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,336 | - |
|
Datasheet | 90HB | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
