DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS-10S-74385-SMTSWITCH ROTARY DIP BCD 0.1A 42V |
366 | - |
|
Datasheet | RDS-74385-SMT | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
JS0108AP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
321 | - |
|
Datasheet | JS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
A6S-8102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
2,977 | - |
|
Datasheet | A6S-H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
RDS-16S-1055-SMTSWITCH ROTARY DIP HEX 0.025A 24V |
781 | - |
|
Datasheet | RDS-1055-SMT | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

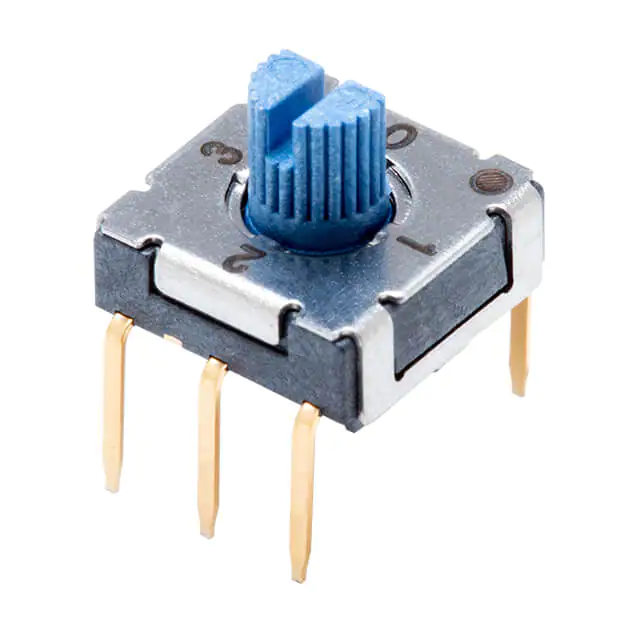

RDS-4S-7229-S-DSWITCH ROTARY DIP BCD 0.1A 50V |
442 | - |
|
Datasheet | RDS-7229-D | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-16S-1045-SMTSWITCH ROTARY DIP HEX 0.025A 24V |
409 | - |
|
Datasheet | RDS-1045-SMT | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

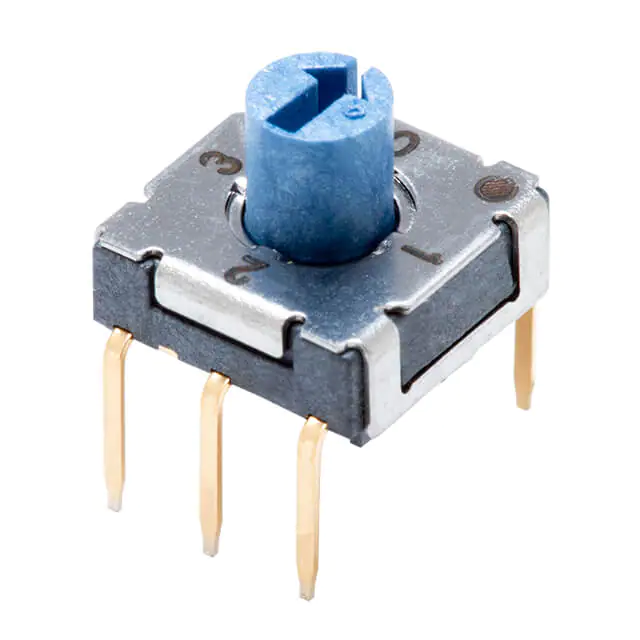

RDS-4S-7229-R-DSWITCH ROTARY DIP BCD 0.1A 50V |
385 | - |
|
Datasheet | RDS-7229-D | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-16S-7229-S-DSWITCH ROTARY DIP HEX 0.1A 50V |
271 | - |
|
Datasheet | RDS-7229-D | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6TR-8101SWITCH PIANO DIP SPST 0.025A 24V |
276 | - |
|
Datasheet | A6TR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
RDS-16S-74385-45A-SMTSWITCH ROTARY DIP HEX 0.1A 42V |
1,233 | - |
|
Datasheet | RDS-74385-45A-SMT | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.329" (8.35mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

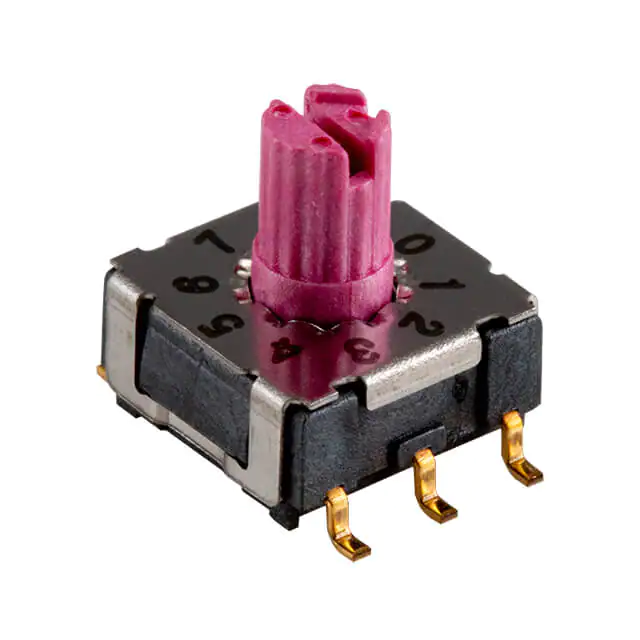

RDS-10S-74385-45A-SMTSWITCH ROTARY DIP BCD 0.1A 42V |
525 | - |
|
Datasheet | RDS-74385-45A-SMT | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.329" (8.35mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
A6HF-2102SWITCH SLIDE DIP SPST 0.025A 24V |
190 | - |
|
Datasheet | A6HF | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
RD10RA16RTTSWITCH DIP ROTARY HEX 150MA 50V |
979 |
1+：$2.37600 10+：$1.99520 50+：$1.74544 100+：$1.64760 250+：$1.52966 500+：$1.44955 1000+：$1.37738 2500+：$1.29396 5000+：$1.23942 |
|
Datasheet | RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA16CTTSW ROTARY DIP HEX COMP 0.15A 50V |
169 | - |
|
Datasheet | RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
A6S-8102-HSWITCH SLIDE DIP SPST 0.025A 24V |
3,768 | - |
|
Datasheet | A6S-H | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6SN-6104SWITCH SLIDE DIP SPST 0.025A 24V |
1,425 | - |
|
Datasheet | A6SN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6HF-4102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
1,108 | - |
|
Datasheet | A6HF | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
SD08H0BSWITCH SLIDE DIP SPST 0.1A 25V |
230 | - |
|
Datasheet | SD | Tube | Active | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
RD10RA10RTTSWITCH ROTARY DIP BCD 0.15A 50V |
190 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6TN-9104SWITCH SLIDE DIP SPST 0.025A 24V |
164 | - |
|
Datasheet | A6TN | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
