DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD10RA4RTTSWITCH ROTARY DIP BCD 0.15A 50V |
4,531 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 4 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10AB10RTTSWITCH ROTARY DIP BCD 0.15A 50V |
2,212 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

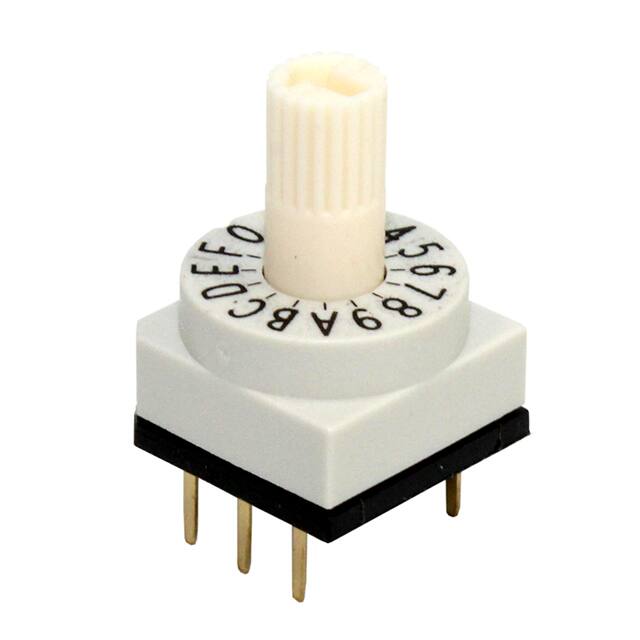

RD10RB16RTTSWITCH ROTARY DIP HEX 0.15A 50V |
4,466 | - |
|
Datasheet | RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10AB6CTTSW ROTARY DIP BCD COMP 0.15A 50V |
2,697 | - |
|
Datasheet | RD10 | Tube | Active | BCD Complement | 6 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA8RTTSW ROTARY DIP OCTAL 0.15A 50V |
3,085 | - |
|
Datasheet | RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB10CTTSW ROTARY DIP BCD COMP 0.15A 50V |
2,336 | - |
|
Datasheet | RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA6RTTSWITCH ROTARY DIP BCD 0.15A 50V |
1,425 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 6 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA6RTTSWITCH ROTARY DIP BCD 0.15A 50V |
3,118 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 6 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RB16CTTSW ROTARY DIP HEX COMP 0.15A 50V |
2,313 | - |
|
Datasheet | RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB4RTTSWITCH ROTARY DIP BCD 0.15A 50V |
1,214 | - |
|
Datasheet | RD10 | Tube | Active | BCD | 4 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
