DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

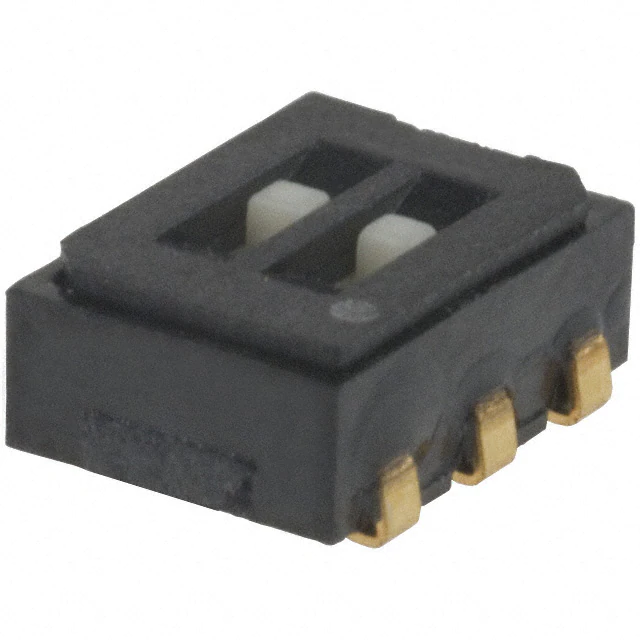

CAS-D20TASWITCH SLIDE SPDTX2 100MA 6V |
23,117 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|

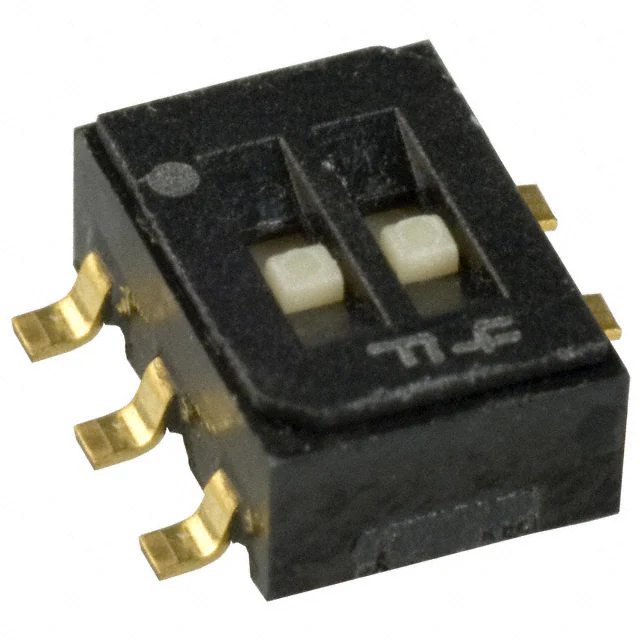

CAS-D20TBSWITCH SLIDE SPDTX2 100MA 6V |
6,807 | - |
|
Datasheet | CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|

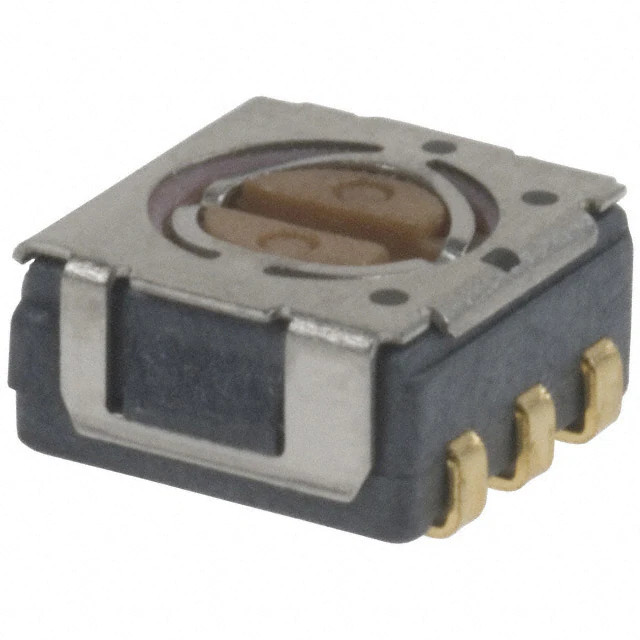

CS-4-14NTASWITCH ROTARY DIP SP4T 0.1A 16V |
1,762 | - |
|
Datasheet | CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
2-1825058-5SWITCH SLIDE DIP SPST 0.1A 24V |
2,826 | - |
|
Datasheet | ADE | Tube | Active | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
S-1031ASW ROTARY DIP HEX COMP 0.1A 5V |
8,844 | - |
|
Datasheet | S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6D-8100SWITCH SLIDE DIP SPST 0.03A 30V |
400 | - |
|
Datasheet | A6D | Tube | Active | SPST | 8 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

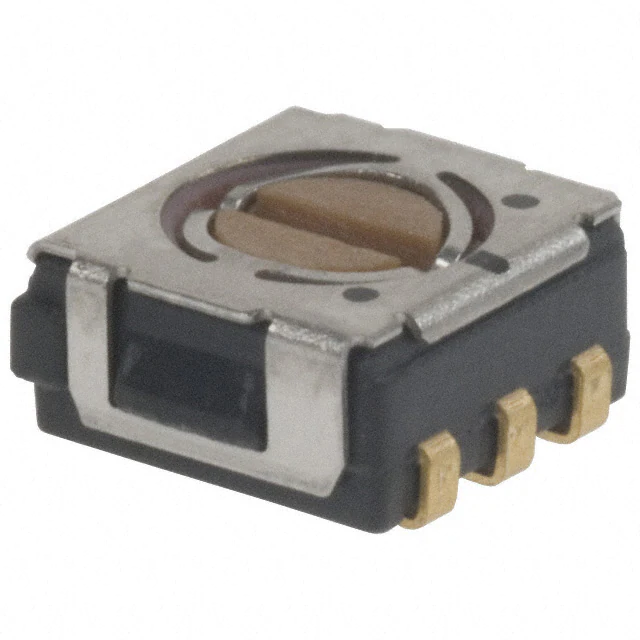

CS-4-22YTASWITCH ROTARY DIP DPDT 0.1A 16V |
6,207 | - |
|
Datasheet | CS-4 | Tape & Reel (TR) | Active | DPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|

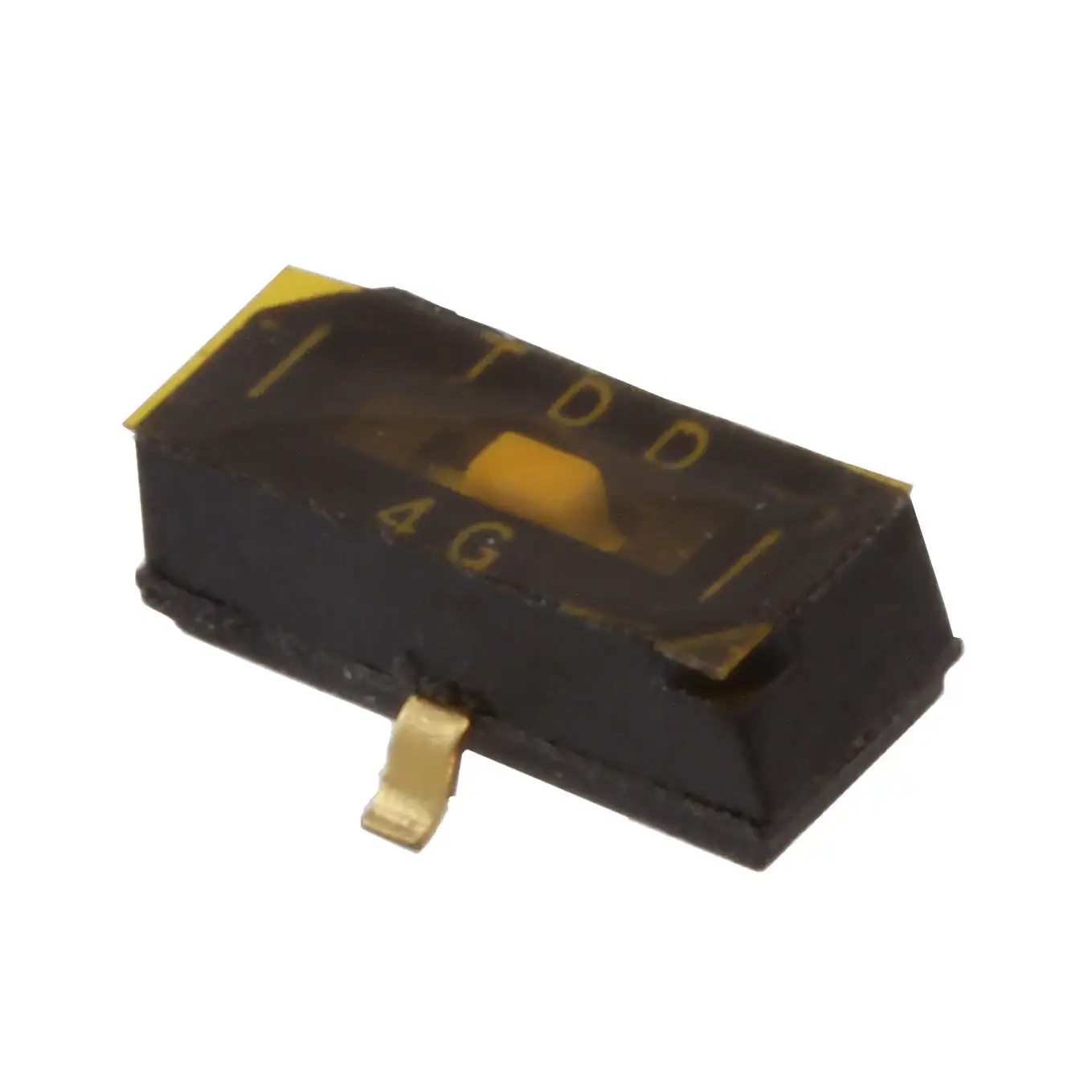

TDD01H0SB1RSWITCH SLIDE DIP SPDT 0.025A 24V |
28,422 | - |
|
Datasheet | TDD | Tape & Reel (TR) | Active | SPDT | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | Tape Seal | -30°C ~ 85°C |
|
TDA01H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
13,689 | - |
|
Datasheet | TDA | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6H-4101SWITCH SLIDE DIP SPST 0.025A 24V |
21,607 | - |
|
Datasheet | A6H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
1825140-2SWITCH SLIDE DIP SPST 0.025A 24V |
88 |
1+：$2.42400 10+：$2.03120 25+：$1.88320 100+：$1.67760 250+：$1.55757 500+：$1.47606 1000+：$1.40268 |
|
Datasheet | MGDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Tape Seal | -30°C ~ 85°C |
|

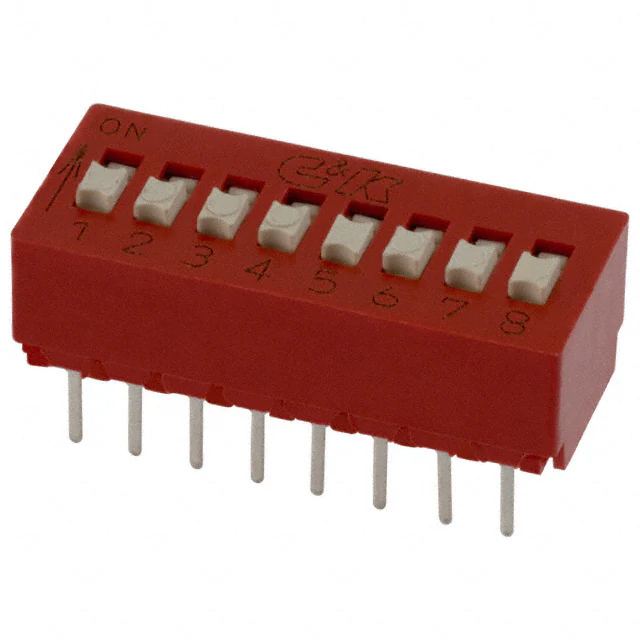

BD08SWITCH SLIDE DIP SPST 0.1A 5V |
9,902 | - |
|
Datasheet | BD | Tube | Active | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CVS-03TBSWITCH SLIDE DIP SPST 0.1A 6V |
52,536 | - |
|
Datasheet | CVS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|

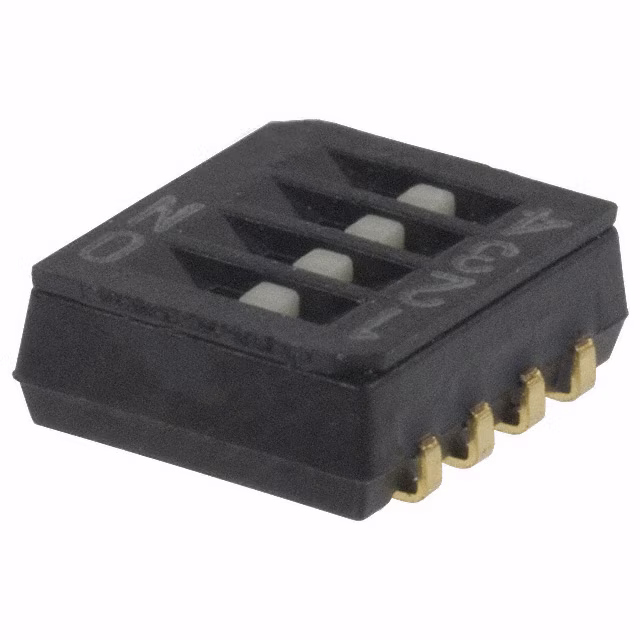

CHS-04TASWITCH SLIDE DIP SPST 0.1A 6V |
36,692 | - |
|
Datasheet | CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
TDA04H0SB1SWITCH DIP SLIDE SPST 25MA 24V |
15,159 |
1+：$2.51200 10+：$2.10960 70+：$1.79451 140+：$1.69497 280+：$1.60349 560+：$1.52042 1050+：$1.45240 2520+：$1.36894 5040+：$1.31170 |
|
Datasheet | TDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

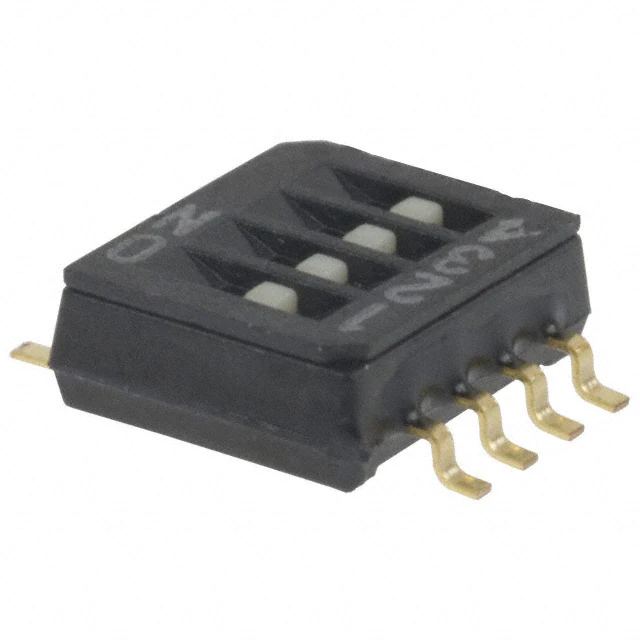

CHS-04TBSWITCH SLIDE DIP SPST 0.1A 6V |
6,614 | - |
|
Datasheet | CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
RDS-16S-1055-SMT-TRSWITCH ROTARY DIP HEX 0.025A 24V |
9,957 | - |
|
Datasheet | RDS-1055-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CVS-01TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,550 | - |
|
Datasheet | CVS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
SDA08H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
2,669 | - |
|
Datasheet | SDA | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

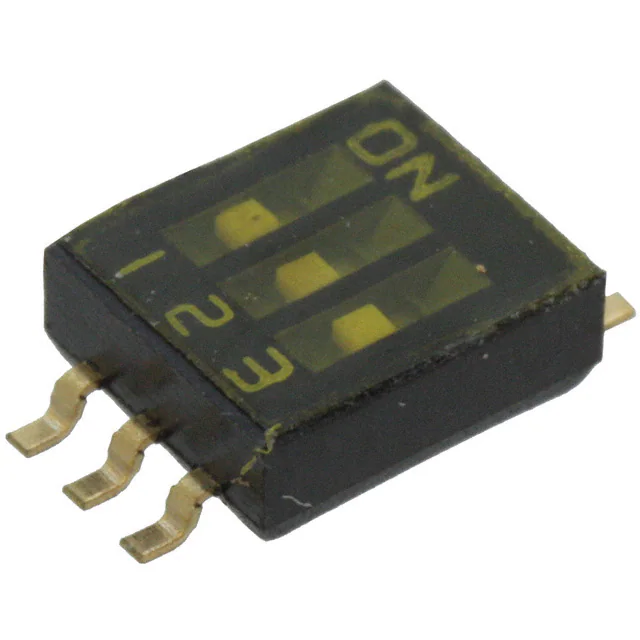

416131160803SWITCH SLIDE DIP SPST 0.025A 24V |
4,143 | - |
|
Datasheet | WS-DISV | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
