DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS2102ETSWITCH SLIDE DIP SPST 0.025A 24V |
23,250 | - |
|
Datasheet | KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAS2104ESWITCH SLIDE DIP SPST 0.025A 24V |
3,511 | - |
|
Datasheet | KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KC1901ASWITCH ROTARY DIP SP9T 0.1A 16V |
2,034 | - |
|
Datasheet | KC1901 | Bulk | Active | SP9T | 9 | 100mA | 16VDC | Rotary with Shaft | Raised | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
KAS2103ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,499 | - |
|
Datasheet | KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAS1108ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,758 | - |
|
Datasheet | KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KAD08LHGTSWITCH SLIDE DIP SPST 0.1A 50V |
133 | - |
|
Datasheet | KAD | Tube | Active | SPST | 8 | 100mA | 50VDC | Slide (Standard) | Raised | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
KAS2108ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,209 | - |
|
Datasheet | KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

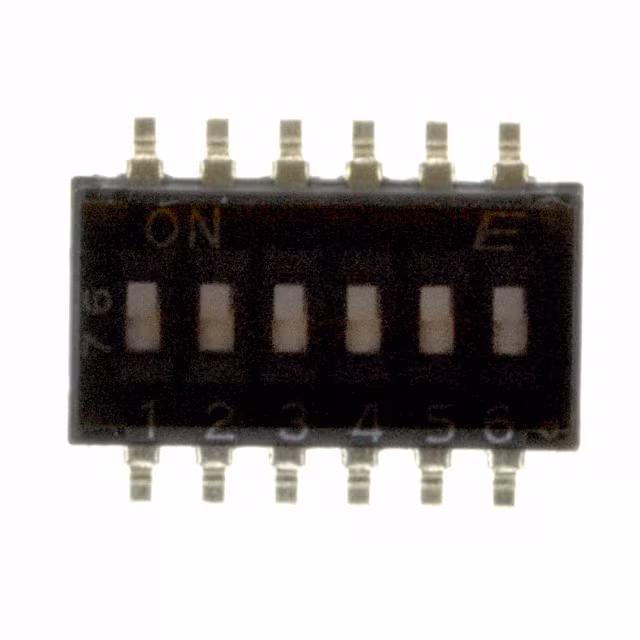

KAN1106RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,804 | - |
|
Datasheet | KAN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

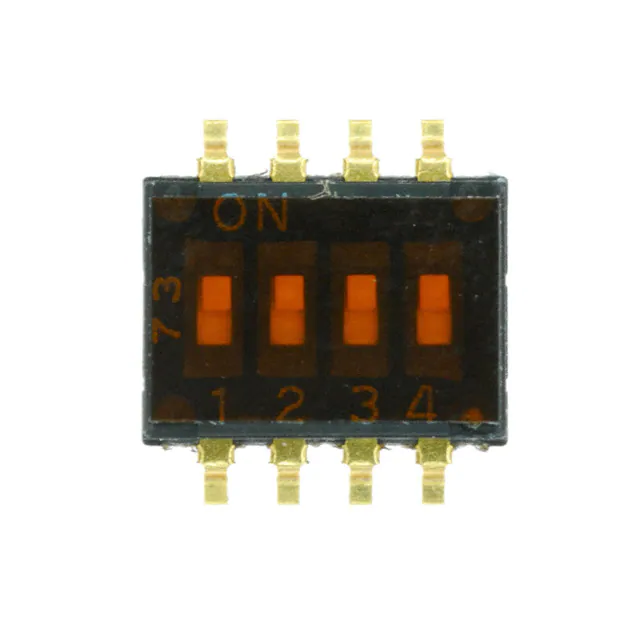

KAN1104RTSWITCH SLIDE DIP SPST 0.025A 24V |
6,486 | - |
|
Datasheet | KAN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
KAE02LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
7,421 | - |
|
Datasheet | KAE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
