Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KLDR002.TXPFUSE CARTRIDGE 2A 600VAC/300VDC |
491 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR015.TXPFUSE CARTRIDGE 15A 600VAC/300VDC |
2,318 |
1+：$29.84800 5+：$24.76320 10+：$22.84480 50+：$18.92224 100+：$17.43520 250+：$15.63338 500+：$14.38346 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 15A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

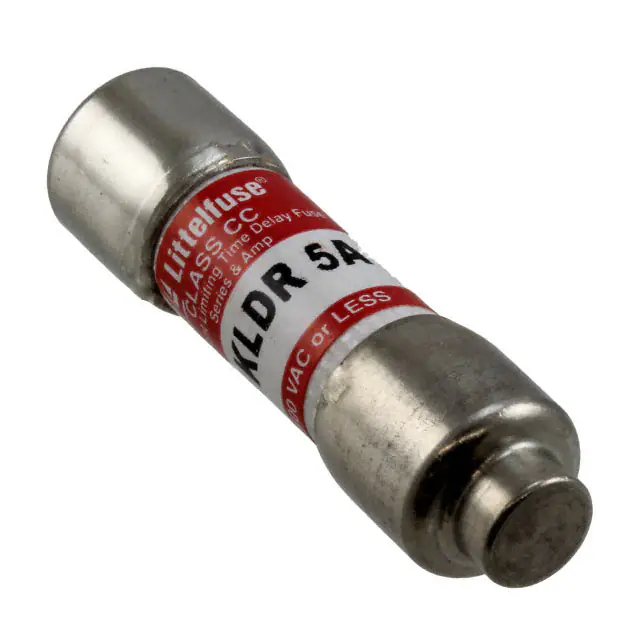

KLDR005.TXPFUSE CARTRIDGE 5A 600VAC/300VDC |
327 |
1+：$29.50400 5+：$24.48000 10+：$22.58320 50+：$18.70576 100+：$17.23576 250+：$15.45485 500+：$14.21933 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR004.TXPFUSE CARTRIDGE 4A 600VAC/300VDC |
240 |
1+：$30.88000 5+：$25.61600 10+：$23.63200 50+：$19.57312 100+：$18.03456 250+：$16.17018 500+：$14.87691 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 4A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR020.TXPFUSE CARTRIDGE 20A 600VAC/300VDC |
222 |
1+：$30.74400 5+：$25.50560 10+：$23.52960 50+：$19.48864 100+：$17.95680 250+：$16.10061 500+：$14.81290 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR030.TXPFUSE CARTRIDGE 30A 600VAC/300VDC |
133 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR008.TXPFUSE CARTRIDGE 8A 600VAC/300VDC |
2,281 | - |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 8A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FWA-20A10FFUSE CRTRDGE 20A 150VAC/VDC 5AG |
110 |
1+：$69.88800 5+：$57.96800 10+：$53.46240 50+：$44.23808 100+：$41.10368 |
|
Datasheet | FWA | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 150 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

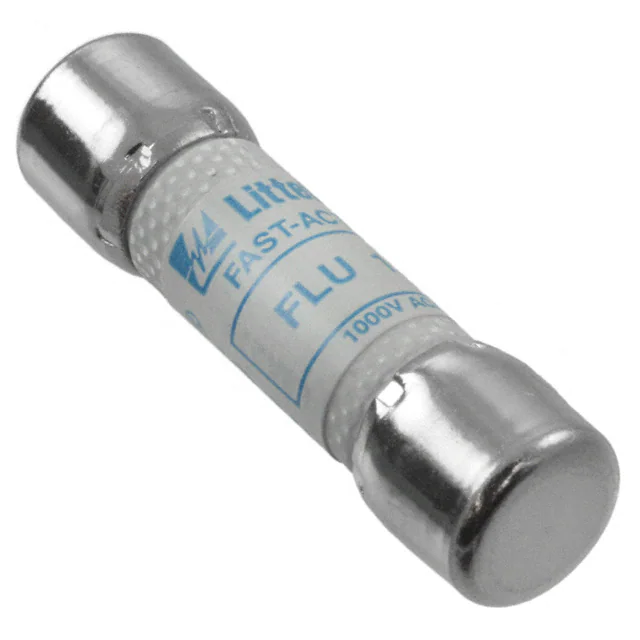

0FLU.440TFUSE CRTRDGE 440MA 1KVAC/VDC 5AG |
270 |
1+：$35.54400 5+：$29.48800 10+：$27.20160 50+：$22.52688 100+：$20.75424 250+：$18.60595 |
|
Datasheet | FLU | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 440mA | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | CSA, UR | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
203406FUSE CARTRIDGE 11A 1KVAC 5PK |
92 |
1+：$54.40000 |
|
Datasheet | - | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | - | Fast Blow | Multi-Meters | - | - | - | - | - | - | - | - |
|
FWC-32A10FFUSE CARTRIDGE 32A 600VAC 5AG |
70 |
1+：$63.65600 5+：$52.80160 10+：$48.69840 50+：$40.30128 100+：$37.11440 |
|
Datasheet | FWC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 32A | 600 VAC | - | - | Electrical, Industrial | - | - | CE, UR | - | 50kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KTK-R-15FUSE CARTRIDGE 15A 600VAC 5AG |
3,112 | - |
|
Datasheet | Limitron™ KTK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KTK-R-20FUSE CARTRIDGE 20A 600VAC 5AG |
4 |
1+：$67.89600 5+：$56.31200 10+：$51.93520 50+：$42.97616 100+：$39.57616 |
|
Datasheet | Limitron™ KTK-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
0FLU011.TFUSE CRTRDGE 11A 1KVAC/VDC 5AG |
107 |
1+：$42.72800 5+：$35.44480 10+：$32.69440 50+：$27.06992 100+：$24.93656 250+：$22.35085 |
|
Datasheet | FLU | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 11A | 1 kVAC | 1 kVDC | Fast Blow | Multi-Meters | - | - | CSA, UR | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

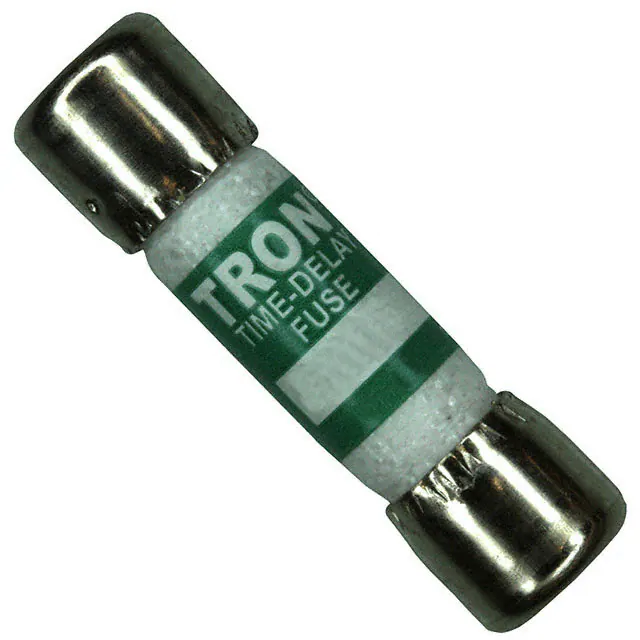

FNQ-30FUSE CARTRIDGE 30A 500VAC 5AG |
3,718 | - |
|
Datasheet | FNQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 500 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FNQ-R-20FUSE CARTRIDGE 20A 600VAC/300VDC |
33 |
1+：$79.20800 5+：$65.68960 10+：$60.58000 50+：$50.11968 100+：$46.14888 |
|
Datasheet | Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLM-20FUSE CRTRDGE 20A 600VAC/VDC 5AG |
183 | - |
|
Datasheet | KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
LP-CC-1FUSE CARTRIDGE 1A 600VAC/300VDC |
1,482 | - |
|
Datasheet | Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
|
LP-CC-2FUSE CARTRIDGE 2A 600VAC/300VDC |
36 |
1+：$83.33600 5+：$69.11200 10+：$63.73600 50+：$52.72672 100+：$48.54744 |
|
Datasheet | Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
|

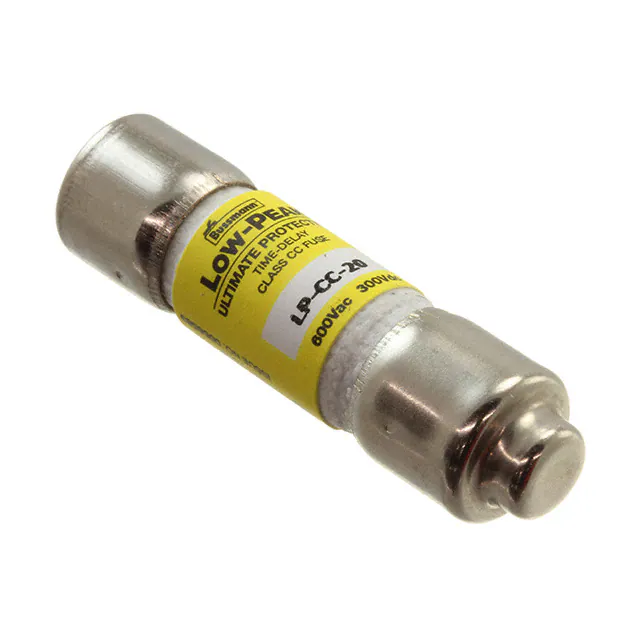

LP-CC-20FUSE CARTRIDGE 20A 600VAC/300VDC |
4,542 | - |
|
Datasheet | Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
