Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C14D32P-A3ROTARY ENCODER OPTICAL 32PPR |
630 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

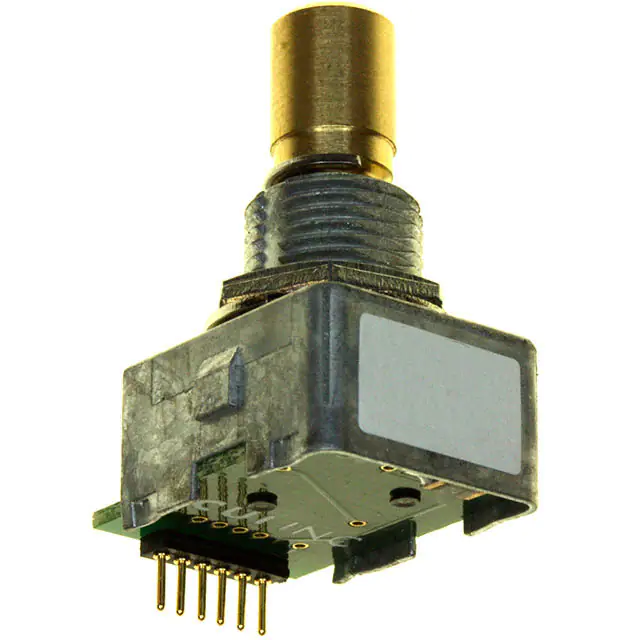

C14D16P-C3ROTARY ENCODER OPTICAL 16PPR |
278 | - |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT10E2-VKIT, AMT10E2, INCREMENTAL ENCODE |
183 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AMT10E3-VKIT, AMT10E3, INCREMENTAL ENCODE |
154 | - |
|
Datasheet | AMT10 | Box | Active | Not Verified | Incremental | Quadrature with Index (Incremental) | Programmable | 3.1V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

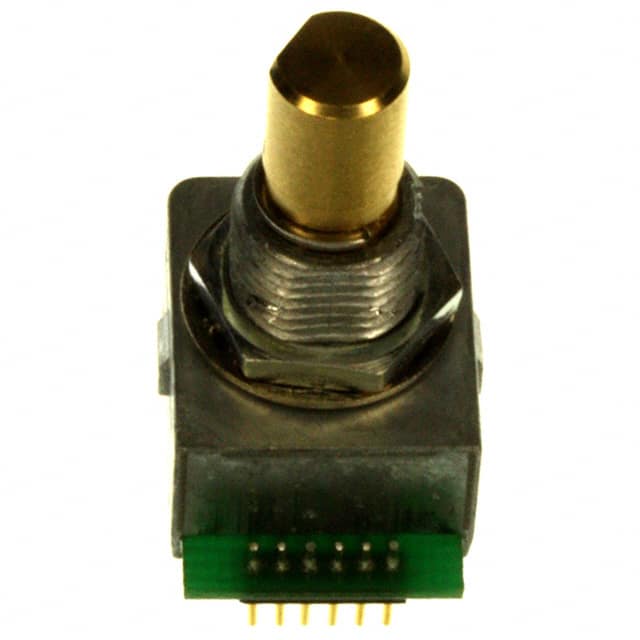

C14D32P-C3ROTARY ENCODER OPTICAL 32PPR |
145 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT313Q-VROTARY ENCODER INCREMENT PROGPPR |
1,151 | - |
|
Datasheet | AMT31 | Box | Active | Not Verified | Incremental | Commutation | Programmable | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
AMT132S-VKIT, AMT132S, INCREMENTAL ENCODE |
1,914 | - |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
AMT203-VROTARY ENCODER ABS 4096PPR/12BIT |
413 | - |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT203S-VENC ABSLT SPI RGHT ANG TERM PINS |
368 |
1+：$55.12800 5+：$46.37280 10+：$43.04480 25+：$39.01184 50+：$36.21600 100+：$36.13624 |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 4.5V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
RIC11-31S10K2-GSMTINCR ENC, MECH, 15 PPR 30 DET, 5 |
922 | - |
|
Datasheet | RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | Surface Mount | Vertical | Surface Mount (SMD,SMT) | 100K | - | - |
