Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

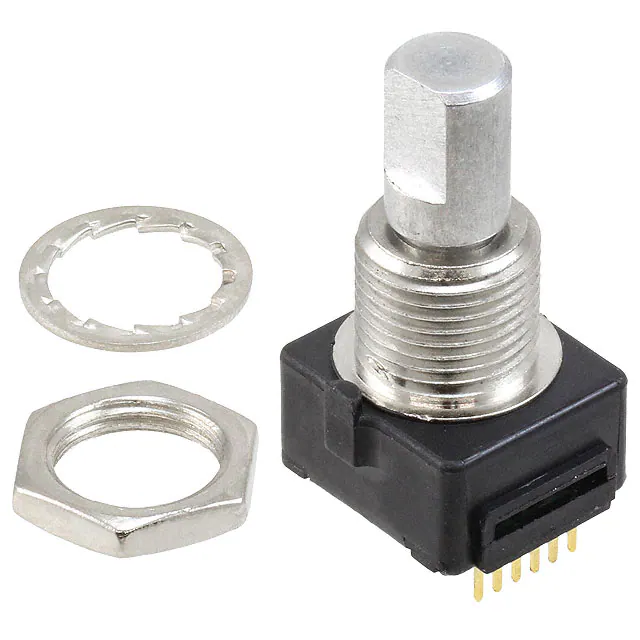

291V1022F832ABROTARY ENCODER OPTICAL 8PPR |
4,133 | - |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
292V1X00AROTARY ENCODER OPTICAL 24PPR |
1,323 | - |
|
Datasheet | 292 | Tray | Active | Not Verified | Optical | Quadrature, 2-Bit | 24 | 4.95V ~ 5.5V | Hole for Shaft | No | Yes | PCB, Through Hole | User Selectable | PC Pin | 3M | - | - |
|
12CE3H26F12T24ROT ENC 12PPR GRN/RED/BLU LED |
1,844 | - |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
11CEY25F243AROTARY ENCODER MECHANICAL 24PPR |
4,491 | - |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
11CEK25F243AROTARY ENCODER MECHANICAL 24PPR |
1,160 | - |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
11CEH20F122AROTARY ENCODER MECHANICAL 12PPR |
1,049 | - |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

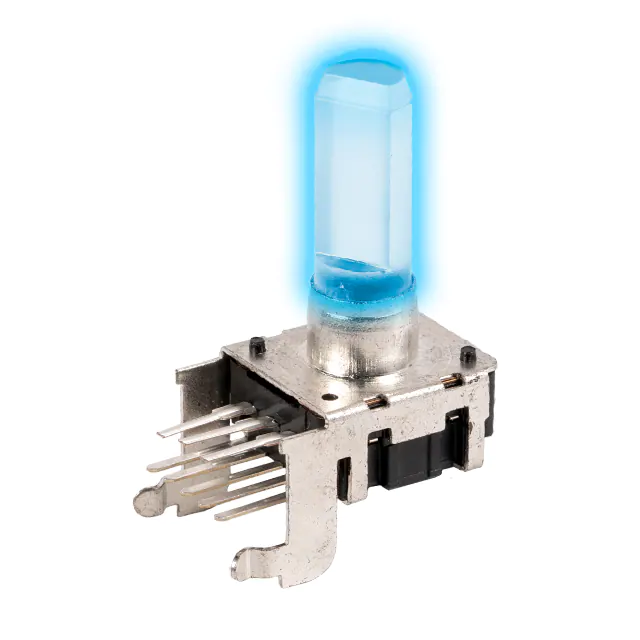

12CE3N26F24T24ROT ENC 24PPR GRN/RED/BLU LED |
3,031 | - |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
291P1022F416ABROTARY ENCODER OPTICAL 4PPR |
4,442 | - |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 4 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
11CEM20F121AROTARY ENCODER MECHANICAL 12PPR |
1,633 | - |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
11CEK25F122AROTARY ENCODER MECHANICAL 12PPR |
3,144 | - |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
