Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC11S-9215F-S0015ROTARY ENCODER MECHANICAL 15PPR |
519 | - |
|
Datasheet | PEC11S | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 15K | - | - |
|

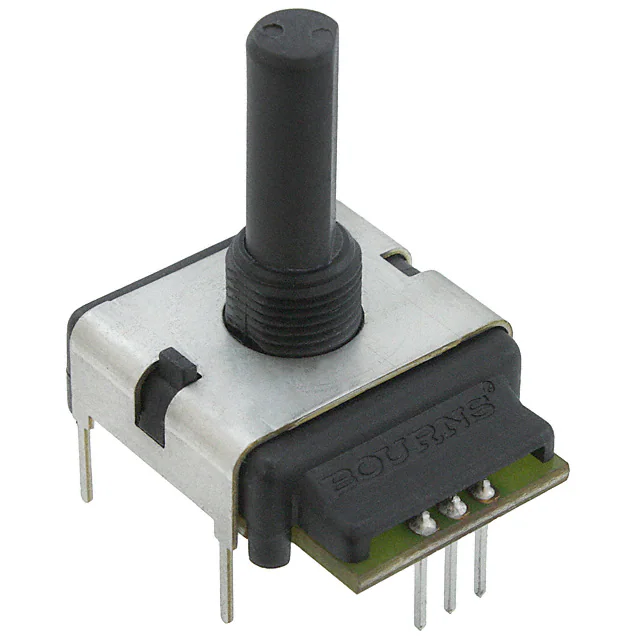

ECW1J-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
245 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

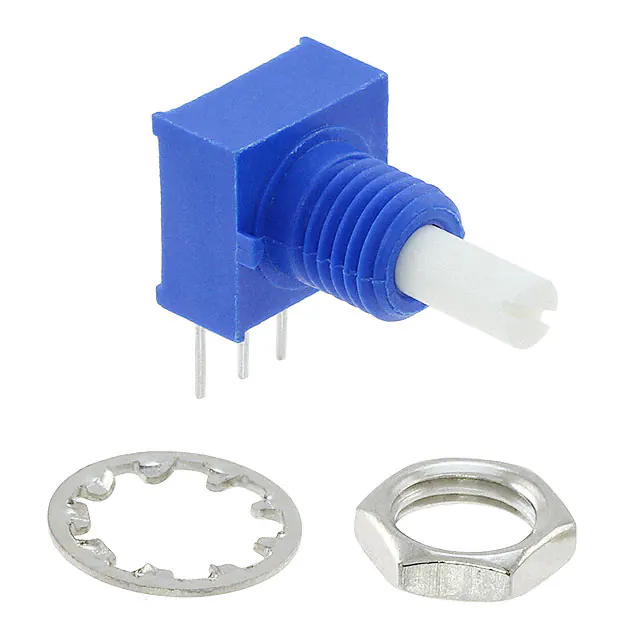

3315C-001-006LROTARY ENCODER MECHANICAL 6PPR |
2,395 | - |
|
Datasheet | 3315 | Tube | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ECW0J-B24-AC0006LROTARY ENCODER MECHANICAL 6PPR |
656 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

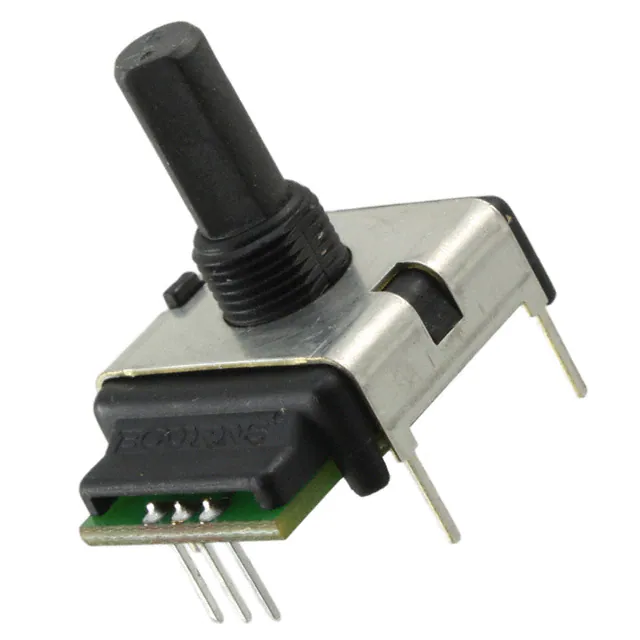

ECW1J-C24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
279 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1D-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
375 | - |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Solder Lug | 200K | - | - |
|

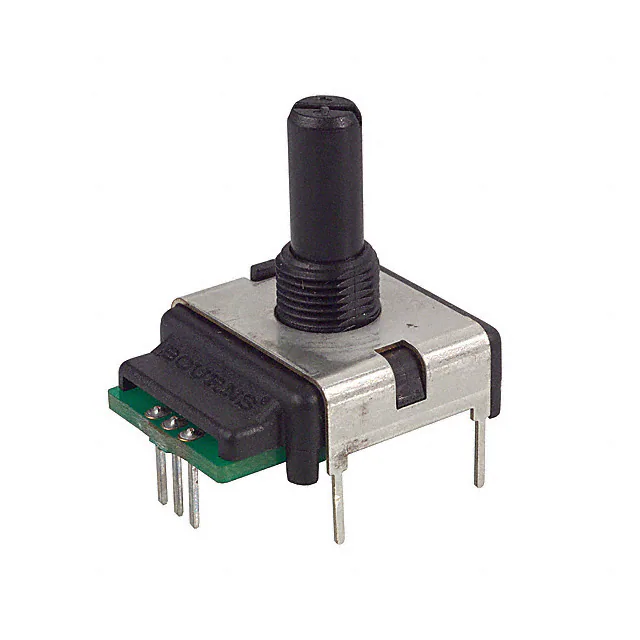

ECW1J-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
348 | - |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

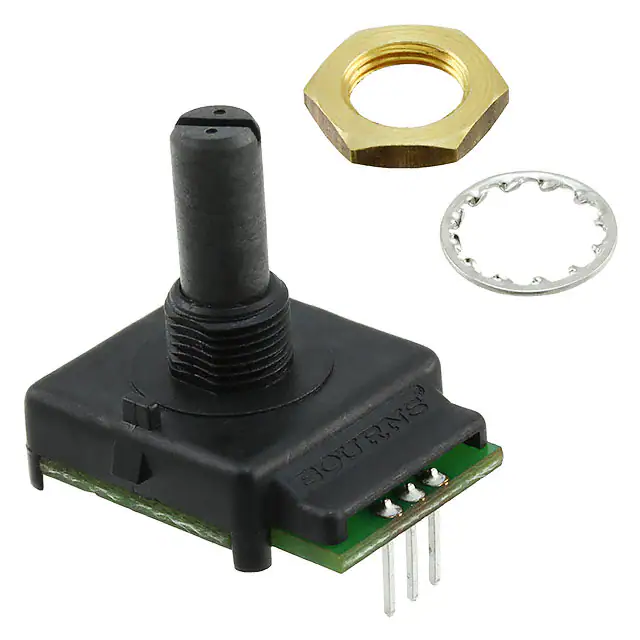

ECW1J-B24-AC0024LROTARY ENCODER MECHANICAL 24PPR |
237 | - |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
PER601-P117-N001560MM LOW PROFILE INCREMENT-RING |
774 | - |
|
Datasheet | - | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 40K | - | - |
|
PER561-P115-N001556MM LOW PROFILE INCREMENT-RING |
1,956 | - |
|
Datasheet | PER56 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 15 | - | Hole for Shaft | Yes | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
