Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEL12T-4225T-S1024ROTARY ENCODER MECHANICAL 24PPR |
3,197 | - |
|
Datasheet | PEL12T | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EM14A1D-B28-L032NROTARY OPTICAL ENCODER - 14MM |
1,300 | - |
|
Datasheet | EM14 | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EMS22A50-C20-LS6ROTARY ENCODER MAGNETIC 1024PPR |
1,178 | - |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 1/4" Dia Flatted End | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|

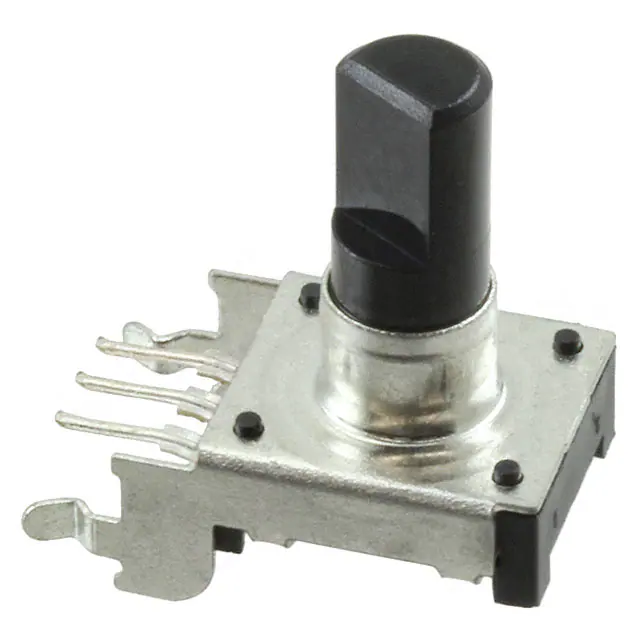

PEC12R-2120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,695 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC12R-2130F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,166 | - |
|
Datasheet | PEC12R | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC11R-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,204 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC09-2320F-T0015ROTARY ENCODER MECHANICAL 15PPR |
4,916 | - |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

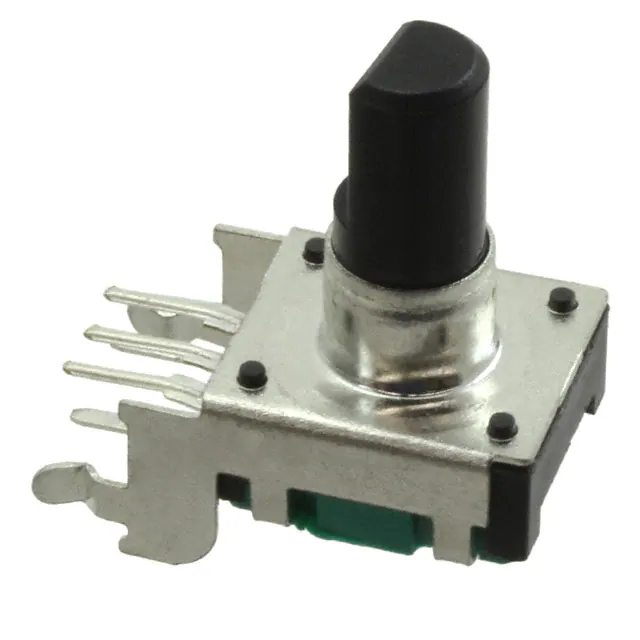

PEC12R-2120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
3,012 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC12R-3222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,806 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

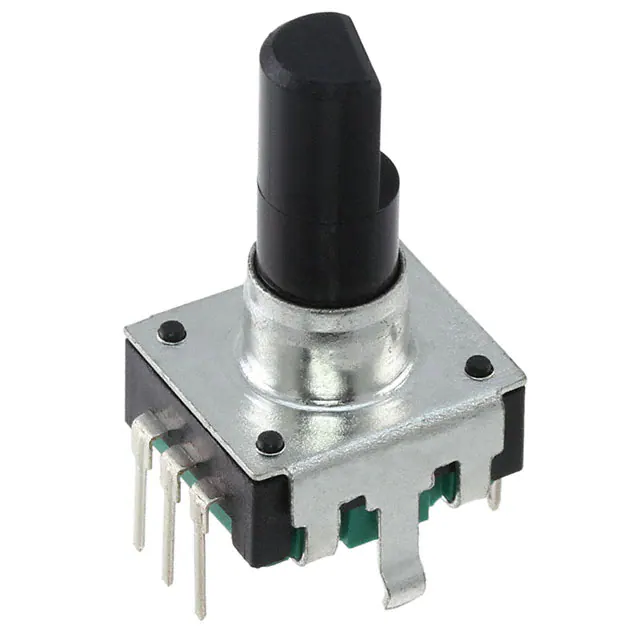

PEC12R-4222F-S0024ROTARY ENCODER MECHANICAL 24PPR |
4,997 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
