Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC12R-4020F-N0024ROTARY ENCODER MECHANICAL 24PPR |
363 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

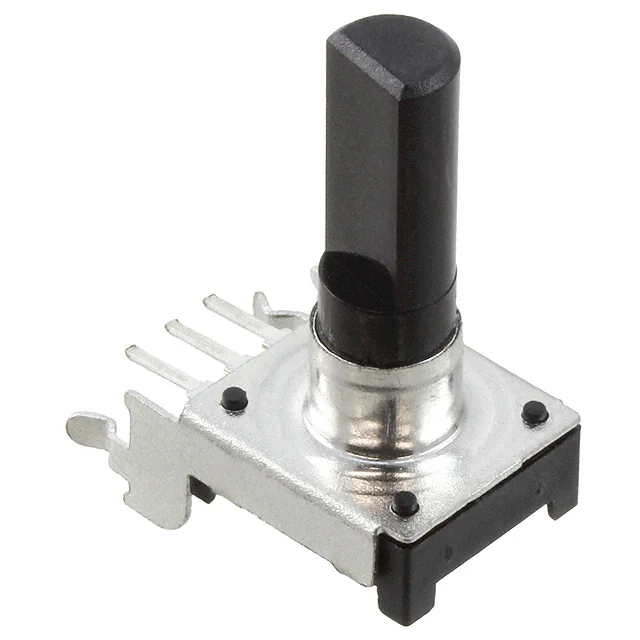

PEC12R-4120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
273 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11R-4215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
8,495 | - |
|
Datasheet | PEC11R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12R-4115F-S0012ENCODER INCREM QUAD VERT PC PIN |
544 |
1+：$1.41600 5+：$1.21760 10+：$1.14000 25+：$1.04576 75+：$0.94240 150+：$0.88240 300+：$0.82606 525+：$0.78309 1050+：$0.73274 |
|
Datasheet | - | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 12 | - | Shaft | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC16-2015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
905 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
PEC12R-2220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
662 | - |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
PEC16-4120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
2,520 | - |
|
Datasheet | PEC16 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

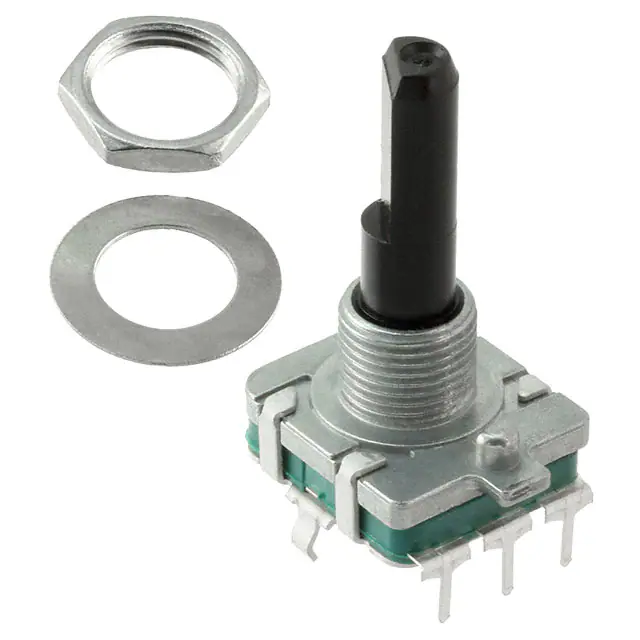

PEC16-4225F-N0024ROTARY ENCODER MECHANICAL 24PPR |
2,341 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEC16-4215F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,386 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC16-4015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
1,215 | - |
|
Datasheet | PEC16 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
