Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEC11-4220F-N0012ROTARY ENCODER MECHANICAL 12PPR |
1,966 | - |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11-4220F-S0012ROTARY ENCODER MECHANICAL 12PPR |
4,050 | - |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4220K-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,350 | - |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC12-4117F-S0012ROTARY ENCODER MECHANICAL 12PPR |
1,604 | - |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

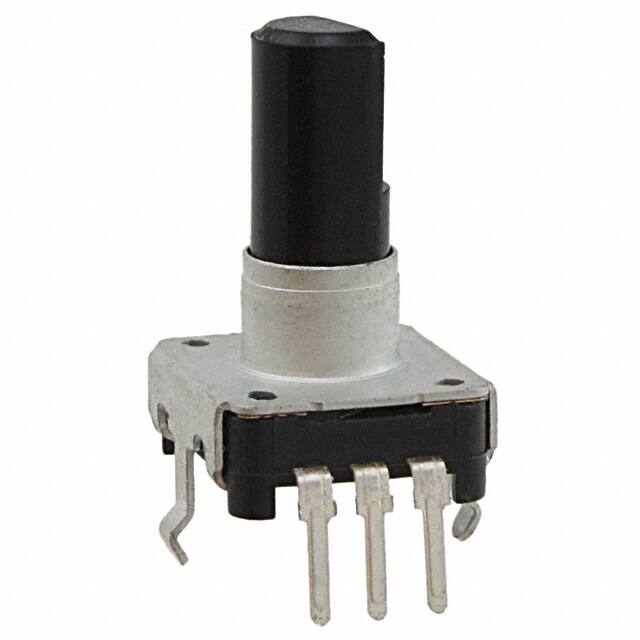

PEC12-4120F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,968 | - |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-B24-EC0024LROTARY ENCODER MECHANICAL 24PPR |
1,028 | - |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
PEC12-4217F-S0024ROTARY ENCODER MECHANICAL 24PPR |
3,237 | - |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12-4220F-N0024ROTARY ENCODER MECHANICAL 24PPR |
4,103 | - |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC12-4220F-S0024ROTARY ENCODER MECHANICAL 24PPR |
1,805 | - |
|
Datasheet | PEC12 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEC11-4015F-N0024ROTARY ENCODER MECHANICAL 24PPR |
3,716 | - |
|
Datasheet | PEC11 | Tray | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
