Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5540#A06ENC OPTICAL QUAD VERT TERMNL PIN |
278 |
1+：$56.76000 5+：$48.71360 10+：$45.59440 25+：$41.75648 50+：$39.05280 100+：$36.50808 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

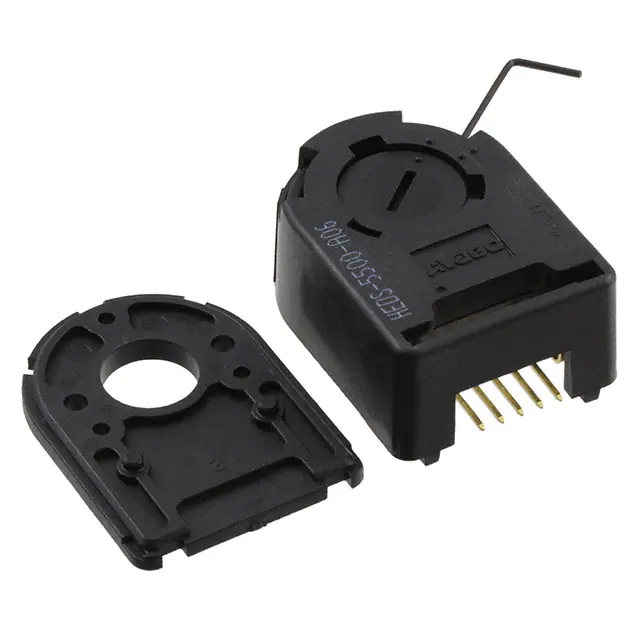

HEDS-5500#A06ROTARY ENCODER OPTICAL 500PPR |
1,353 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

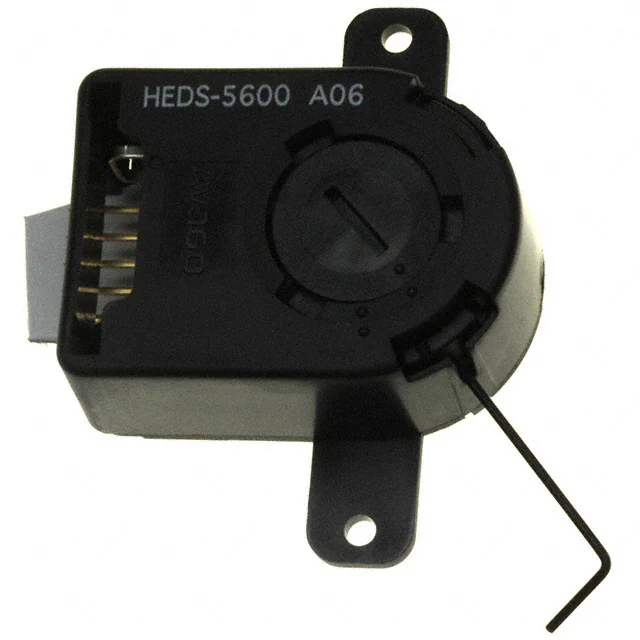

HEDS-5600#A06ROTARY ENCODER OPTICAL 500PPR |
3,182 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#E06ROTARY ENCODER OPTICAL 200PPR |
3,726 | - |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16FROTARY ENCODER OPTICAL 32PPR |
504 | - |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-9730#Q50ROTARY ENCODR OPTICAL 180 LPI |
451 | - |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 180 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-9955-10018B SINGLE MAG ENC MULTIPLE AXIS |
1,080 | - |
|
Datasheet | AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9955-Q3218B SINGLE MAG ENC MULTIPLE AXIS |
771 | - |
|
Datasheet | AEAT-9955 | Tray | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEAT-9955-10218B SINGLE MAG ENC MULTIPLE AXIS |
553 | - |
|
Datasheet | AEAT-9955 | Tape & Reel (TR) | Active | Not Verified | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
HEDR-5420-ES214ROTARY ENCODER OPTICAL 200PPR |
341 | - |
|
Datasheet | HEDR | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
