Encoders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15T-01SA-0500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,640 | - |
|
Datasheet | 15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|

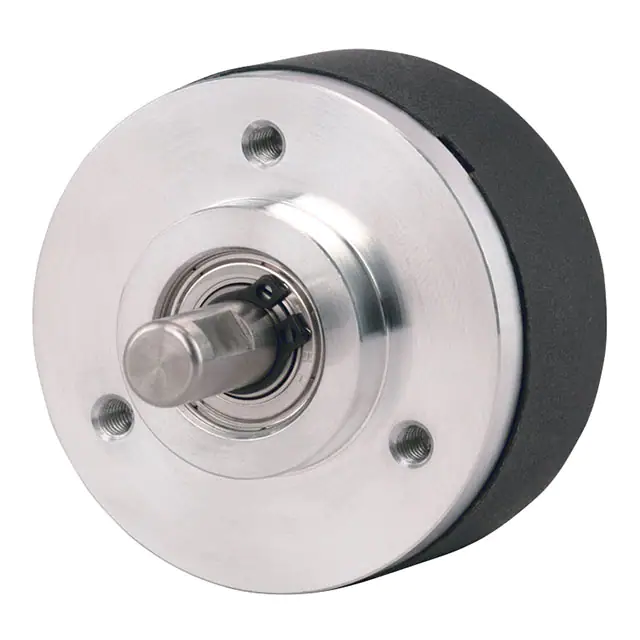

15S-19M8-1000NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
2,377 | - |
|
Datasheet | 15S | Box | Active | Not Verified | Incremental | Open Collector | 1000 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-04SA-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
1,966 | - |
|
Datasheet | 15T | Box | Active | Not Verified | Incremental | Open Collector | 500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-0600NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
3,329 | - |
|
Datasheet | 15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 600 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-19M1-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,783 | - |
|
Datasheet | 15S | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-20M6-0100NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,928 | - |
|
Datasheet | 15S | Box | Active | Not Verified | Incremental | Open Collector | 100 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-1000NV1RHV-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,292 | - |
|
Datasheet | 15T | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15S-20M6-1024NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,417 | - |
|
Datasheet | 15S | Box | Active | Not Verified | Incremental | Open Collector | 1024 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M8-0600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,438 | - |
|
Datasheet | 15S | Box | Active | Not Verified | Incremental | Open Collector | 600 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,940 | - |
|
Datasheet | 15T | Box | Active | Not Verified | Incremental | Open Collector | 500 | 5V ~ 28V | 10mm Open Center | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
