Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

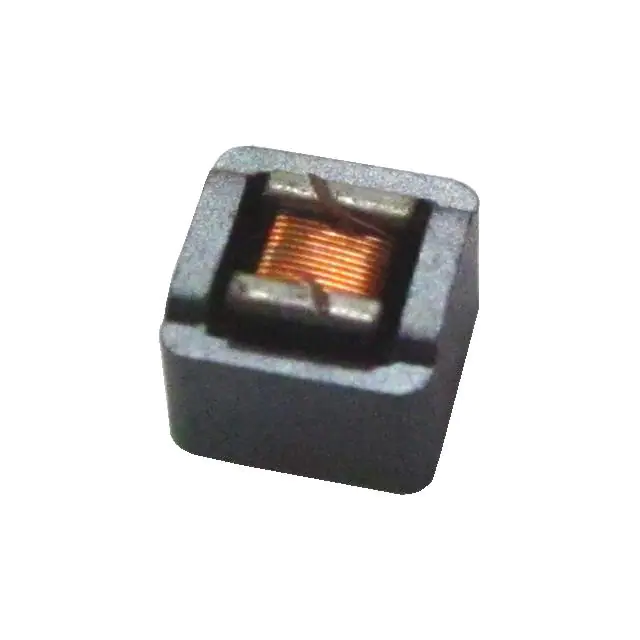

BWPS00383829470M00INDUCTOR RF |
2,804 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 430 mA | - | Shielded | 2.2Ohm Max | 33 @ 1MHz | 15MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829102K00INDUCTOR RF |
1,776 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | - | 100mA | Shielded | 29.2Ohm Max | 20 @ 1MHz | 1.5MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829331M00INDUCTOR RF |
3,467 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 200 mA | - | Shielded | 17Ohm Max | 33 @ 1MHz | 3.8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829121K00INDUCTOR RF |
3,009 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 250 mA | - | Shielded | 5Ohm Max | 33 @ 1MHz | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829330K00INDUCTOR RF |
3,643 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 520 mA | - | Shielded | 1.61Ohm Max | 33 @ 1MHz | 21MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829561M00INDUCTOR RF |
4,187 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 130 mA | - | Shielded | 18.4Ohm Max | 33 @ 1MHz | 2.8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829100K00INDUCTOR RF |
1,010 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 820 mA | - | Shielded | 750mOhm Max | 30 @ 1MHz | 95MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS00383829390M00INDUCTOR RF |
3,486 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 460 mA | - | Shielded | 1.85Ohm Max | 33 @ 1MHz | 18MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS003838293R9M00INDUCTOR RF |
1,401 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.2 A | - | Shielded | 290mOhm Max | 30 @ 1MHz | 172MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
|
|
BWPS003838294R7K00INDUCTOR RF |
3,550 | - |
|
Datasheet | BWPS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 1.1 A | - | Shielded | 350mOhm Max | 30 @ 1MHz | 157MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.116" (2.94mm) |
