Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

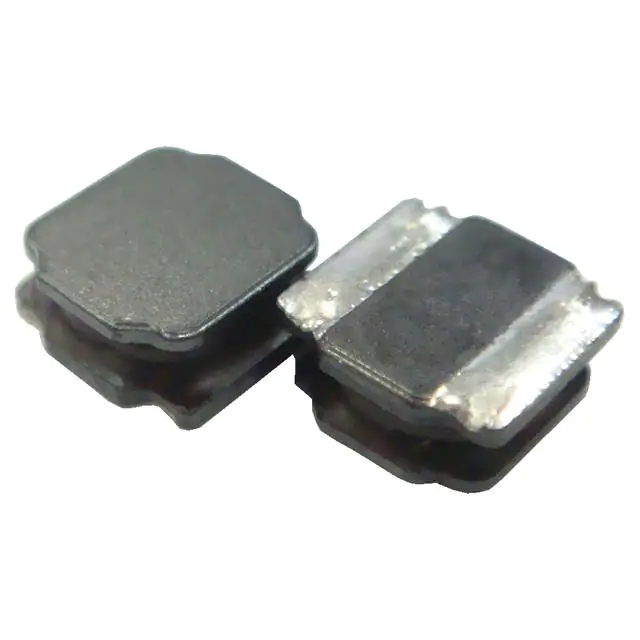

AWVS008080408R2TL1INDUCTOR POWER |
2,821 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±30% | 3.3 A | 3.1A | Shielded | 37mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
AWVS008080402R2T00INDUCTOR POWER |
3,524 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 6.3 A | 8.1A | Shielded | 12mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080403R9T00INDUCTOR POWER |
4,157 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 4.9 A | 5.4A | Shielded | 18mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080403R3T00INDUCTOR POWER |
1,215 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 5.3 A | 6.6A | Shielded | 15mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080405R6T00INDUCTOR POWER |
4,602 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±30% | 4.5 A | 5A | Shielded | 23mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080406R8T00INDUCTOR POWER |
2,368 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 4.4 A | 4.7A | Shielded | 25mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080402R0T00INDUCTOR POWER |
1,032 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2 µH | ±30% | 6.5 A | 8.5A | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS00808040470M00INDUCTOR POWER |
1,058 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.4 A | 1.6A | Shielded | 160mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080402R5M00INDUCTOR POWER |
1,193 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.5 µH | ±20% | 5.5 A | 7.2A | Shielded | 13mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
AWVS008080403R3ML1INDUCTOR POWER |
1,791 | - |
|
Datasheet | AWVS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 5.3 A | 4.99A | Shielded | 19mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
