Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

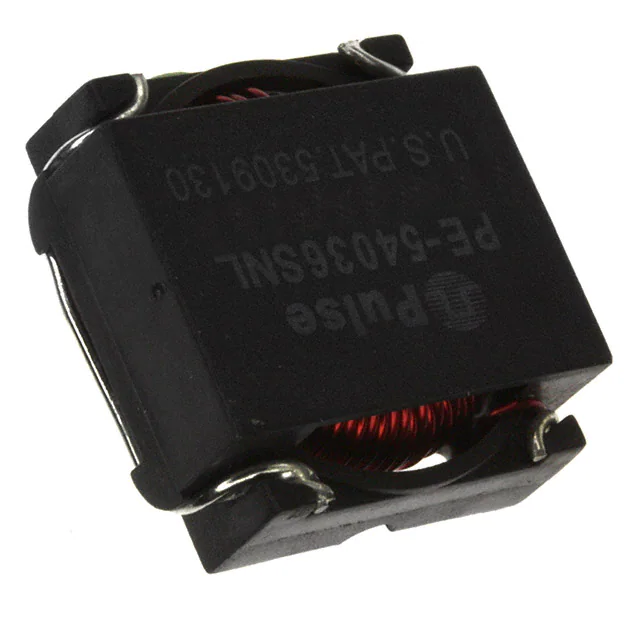

PE-54036SNLFIXED IND 168UH 1.81A 180MOHM SM |
168 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
P0146NLFIXED IND 25UH 2.43A 75 MOHM SMD |
308 | - |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 25 µH | - | 2.43 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
PM4344.333NLTFIXED IND 33UH 10.7A 44MOHM SMD |
141 | - |
|
Datasheet | PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

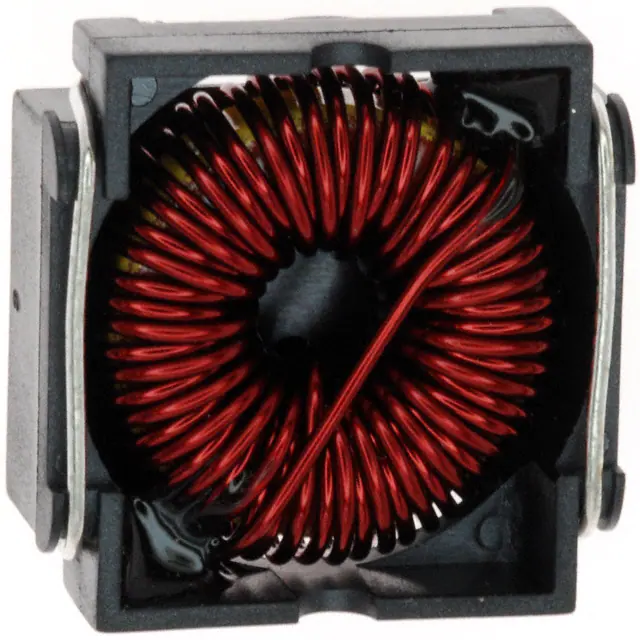

PE-54039SNLFIXED IND 53UH 3A 80 MOHM SMD |
994 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PE-53831NLFIXED IND 53UH 1.87A 130 MOHM TH |
556 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
PG1083.323NLFIXED IND 32UH 9A 21.5 MOHM SMD |
760 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 32 µH | ±20% | 9 A | 12.5A | Unshielded | 21.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PA2247.472NLTFIXED IND 4.7UH 30A 3.8MOHM SMD |
750 | - |
|
Datasheet | PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 30 A | 39A | Unshielded | 3.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
PM5433.103NLTFIXED IND 10UH 16A 9.6 MOHM SMD |
806 | - |
|
Datasheet | PM5433.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 16 A | - | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.315" (8.00mm) |
|
PE-51516NLFIXED IND 98UH 6A 48 MOHM TH |
391 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 98 µH | - | 6 A | - | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
PE-51515NLFIXED IND 52UH 7A 32 MOHM TH |
327 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | 52 µH | - | 7 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
