Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFSI001211092R2M05INDUCTOR POWER |
4,066 | - |
|
Datasheet | AFSI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 30 A | 30A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.346" (8.80mm) |
|

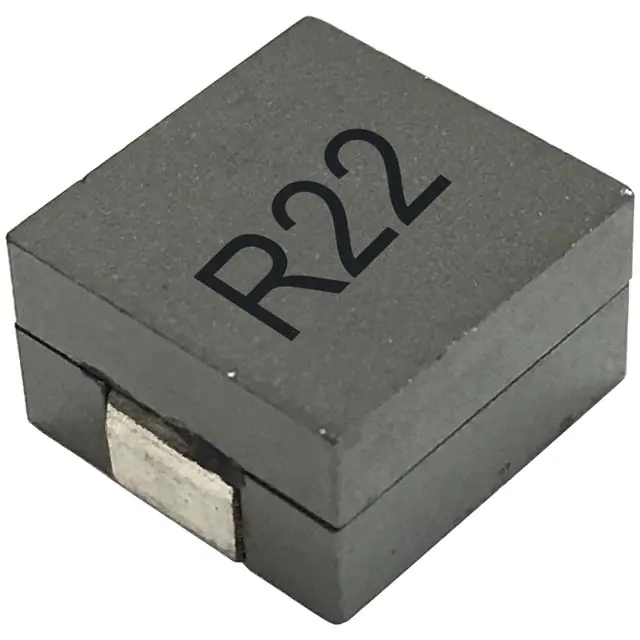

APMI00100868R17L0FINDUCTOR POWER |
2,944 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±15% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17L0EINDUCTOR POWER |
4,590 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±15% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17K0FINDUCTOR POWER |
1,120 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±10% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17K0EINDUCTOR POWER |
2,829 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±10% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R17M0EINDUCTOR POWER |
1,788 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 170 nH | ±20% | 54 A | 58A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R22M0EINDUCTOR POWER |
3,454 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 54 A | 50A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R22L0FINDUCTOR POWER |
2,906 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±15% | 54 A | 50A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R18M0EINDUCTOR POWER |
3,170 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±20% | 54 A | 56A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
APMI00100868R22K0EINDUCTOR POWER |
2,130 | - |
|
Datasheet | APMI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 54 A | 50A | Shielded | 0.29mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
