Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4303.223NLTFIXED IND 22UH 2.5A 75 MOHM SMD |
1,498 | - |
|
Datasheet | PA4303.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
PM4343.223NLTFIXED IND 22UH 9A 37 MOHM SMD |
2,361 | - |
|
Datasheet | PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 9 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
PG0083.332NLFIXED IND 3.3UH 5.8A 27.5MOHM SM |
1,910 | - |
|
Datasheet | PG0083 | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±25% | 5.8 A | 9.5A | Unshielded | 27.5mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
PF0464.302NLTFIXED IND 3UH 3A 22 MOHM SMD |
2,400 | - |
|
Datasheet | PF0464NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 3 µH | ±20% | 3 A | 3A | Shielded | 22mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
PA0512.700NLTFIXED IND 72NH 31A 0.32 MOHM SMD |
3,120 | - |
|
Datasheet | PA0512NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 72 nH | ±20% | 31 A | 58A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.96mm) |
|
P1167.334NLTFIXED IND 330UH 350MA 1.47OHM SM |
2,455 | - |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 350 mA | 350mA | Shielded | 1.47Ohm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
P1167.183NLTFIXED IND 18UH 1.5A 73 MOHM SMD |
2,228 | - |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.5 A | 1.5A | Shielded | 73mOhm Max | - | 18MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
P1166.681NLTFIXED IND 680NH 5.5A 6 MOHM SMD |
1,200 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 5.5 A | 5.9A | Shielded | 6mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|

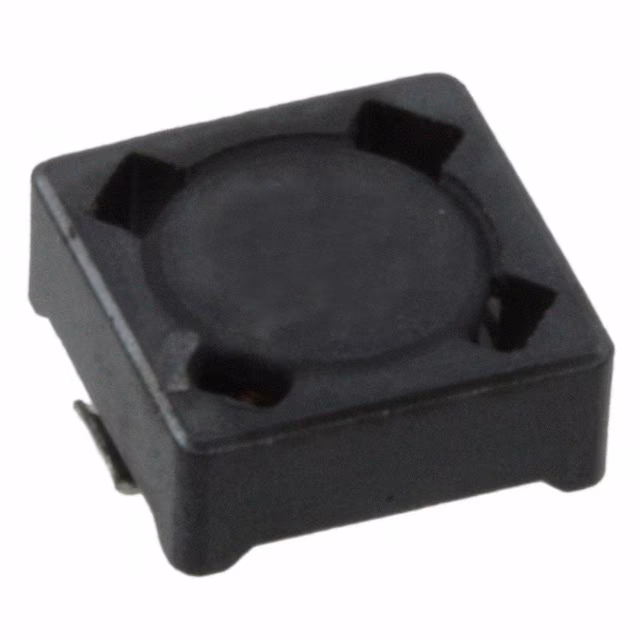

P1166.153NLTFIXED IND 15UH 1.4A 92 MOHM SMD |
1,200 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.4 A | 1.5A | Shielded | 92mOhm Max | - | 22MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
|
|
P1166.682NLTFIXED IND 6.8UH 2.1A 40 MOHM SMD |
1,176 | - |
|
Datasheet | P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 2.1 A | 2.1A | Shielded | 40mOhm Max | - | 38MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.138" (3.51mm) |
