Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

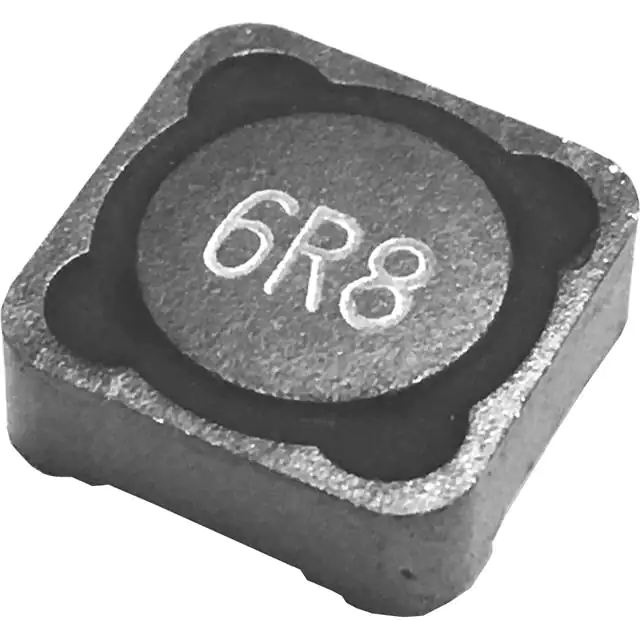

APCI00121210850TY0INDUCTOR POWER |
4,001 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 µH | ±30% | 2.6 A | 2.6A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI001212108R2MY0INDUCTOR POWER |
3,843 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.7 A | 8.3A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI00121210850MY0INDUCTOR POWER |
2,212 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 µH | ±20% | 2.6 A | 2.6A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI001212108R2TY0INDUCTOR POWER |
2,533 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 6.7 A | 8.3A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI00121210820TY0INDUCTOR POWER |
1,027 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 2.6 A | 2.62A | Shielded | 99mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI00121210821MY0INDUCTOR POWER |
4,539 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 940 mA | 810mA | Shielded | 824mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
APCI00121210821M80INDUCTOR POWER |
2,614 | - |
|
Datasheet | APCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 850 mA | 1.1A | Shielded | 1Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

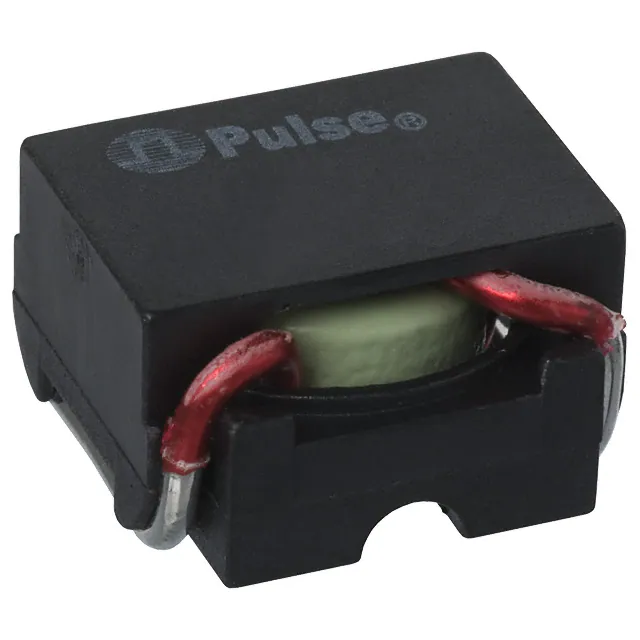

PE-53690NLFIXED IND 810NH 14.3A 2.5MOHM SM |
2,394 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 810 nH | - | 14.3 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.605" W (15.75mm x 15.37mm) | 0.370" (9.40mm) |
|
PG2110.181HLTIND PWR BEAD 180NH 41A SMD |
1,960 | - |
|
Datasheet | PG2110.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±15% | 41 A | 41A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.315" (8.00mm) |
|
|
PG2110.121HLTIND PWR BEAD 120NH 53A SMD |
2,194 | - |
|
Datasheet | PG2110.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 53 A | 61A | Shielded | 0.22mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.315" (8.00mm) |
