Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1170.334NLTFIXED IND 330UH 820MA 620MOHM SM |
4,444 | - |
|
Datasheet | P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 820 mA | 820mA | Shielded | 620mOhm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|

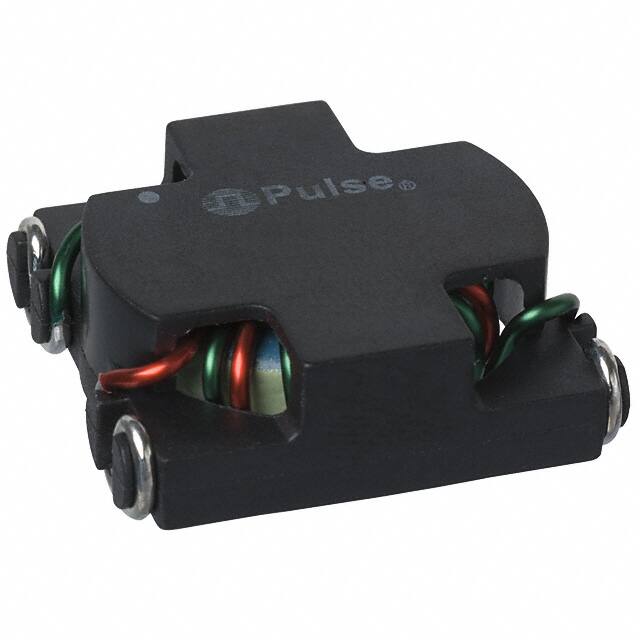

PE-53363NLFIXED IND 2.1UH 22.4A 3.4MOHM SM |
4,787 | - |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.110" L x 1.000" W (28.19mm x 25.40mm) | 0.390" (9.91mm) |
|
PE-53363NLTFIXED IND 2.1UH 22.4A 3.4MOHM SM |
4,982 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.110" L x 1.000" W (28.19mm x 25.40mm) | 0.390" (9.91mm) |
|
PE-54040SNLTFIXED IND 38UH 3A 50 MOHM SMD |
1,551 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.222NLTFIXED IND 120NH 34A 1.8 MOHM SMD |
3,632 | - |
|
Datasheet | PG1083NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±20% | 34 A | 46A | Unshielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
|
PG0138.332NLTFIXED IND 3.3UH 11.5A 10.4 MOHM |
4,078 | - |
|
Datasheet | PG0138NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11.5 A | 12.2A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.193" (4.90mm) |
|
|
PG0084.651NLTFIXED IND 650NH 32A 2.8 MOHM SMD |
2,527 | - |
|
Datasheet | PG0084NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 650 nH | ±20% | 32 A | 32A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.173" (4.40mm) |
|
|
PG0084.112NLTFIXED IND 1.1UH 24A 4.2 MOHM SMD |
3,401 | - |
|
Datasheet | PG0084NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.1 µH | ±20% | 24 A | 24A | Unshielded | 4.2mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.173" (4.40mm) |
|
APCK00131111100M70INDUCTOR POWER |
2,540 | - |
|
Datasheet | APCK | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.2 A | 7.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.413" W (12.80mm x 10.50mm) | 0.421" (10.70mm) |
|
P1172.372NLTFIXED IND 3.7UH 8.3A 8.5MOHM SMD |
3,709 | - |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.7 µH | ±30% | 8.3 A | 9.2A | Shielded | 8.5mOhm Max | - | 37MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
