Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

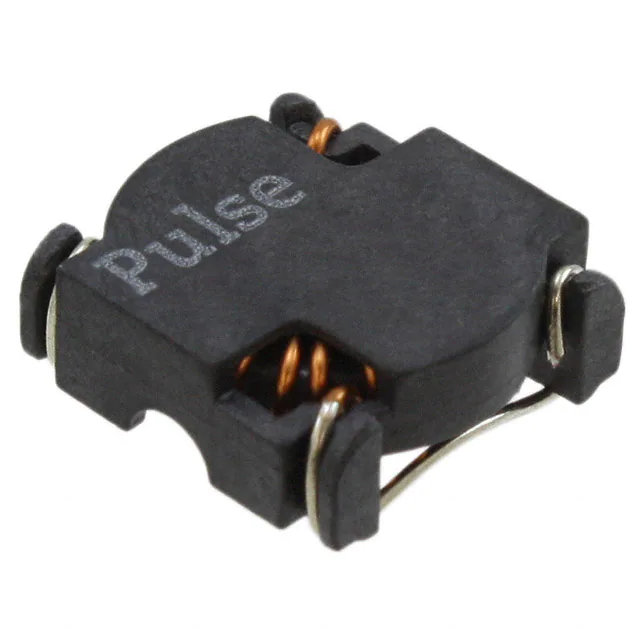

P0144NLFIXED IND 10.4UH 3.8A 31MOHM SMD |
1,549 | - |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 10.4 µH | - | 3.8 A | - | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
P0150NLFIXED IND 152UH 990MA 445MOHM SM |
2,883 | - |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 152 µH | - | 990 mA | - | Unshielded | 445mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|

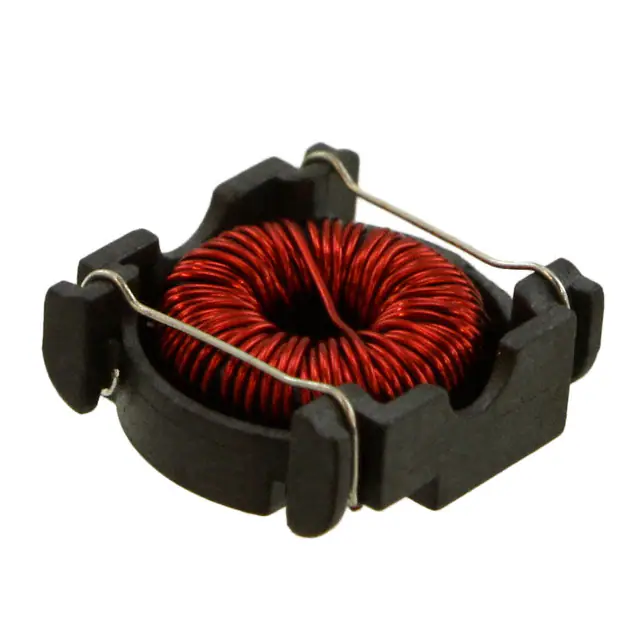

P0149NLFIXED IND 100UH 1.23A 283MOHM SM |
4,768 | - |
|
Datasheet | Bobcat | Nonstandard | Tube | Active | Toroidal | - | 100 µH | - | 1.23 A | - | Unshielded | 283mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
BX6150NLTFIXED IND |
1,275 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

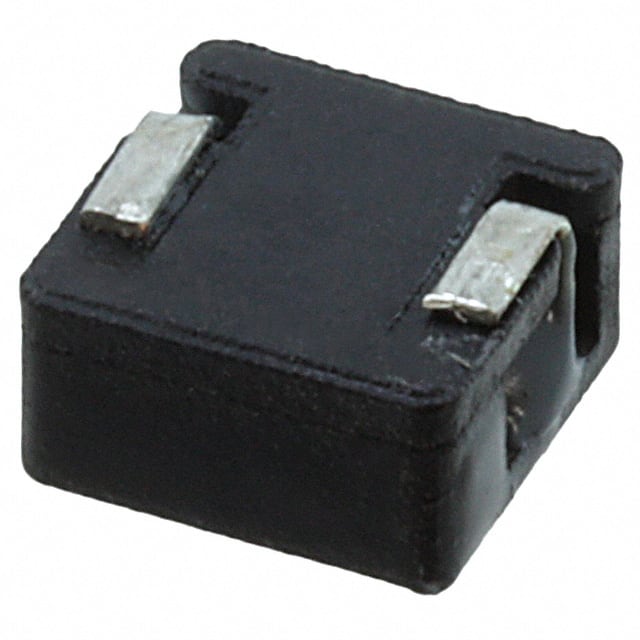

PG0083.401NLTFIXED IND 400NH 17.5A 3.2MOHM SM |
2,954 | - |
|
Datasheet | PG0083 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±25% | 17.5 A | 27A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|
AMHS00131313220LE1INDUCTOR POWER |
3,740 | - |
|
Datasheet | AMHS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±15% | 5.5 A | 15A | Shielded | 50mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
|
|
AMHS00131313150LC3INDUCTOR POWER |
3,682 | - |
|
Datasheet | AMHS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±15% | 7 A | 16A | Shielded | 33.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
|
|
AMHS00131313100LB1INDUCTOR POWER |
2,192 | - |
|
Datasheet | AMHS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±15% | 9 A | 21A | Shielded | 20.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
|
|
AMHS001313136R8LA3INDUCTOR POWER |
2,915 | - |
|
Datasheet | AMHS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±15% | 11.5 A | 30A | Shielded | 13.5mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
|
|
AMHS001313138R2LA6INDUCTOR POWER |
2,998 | - |
|
Datasheet | AMHS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 8.2 µH | ±15% | 10 A | 25A | Shielded | 16mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.512" (13.00mm) |
