Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53634FIXED IND 50UH 2.6A 133 MOHM SMD |
1,199 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 50 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PE-53604FIXED IND 58.1UH 1.3A 290MOHM SM |
4,810 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 58.1 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

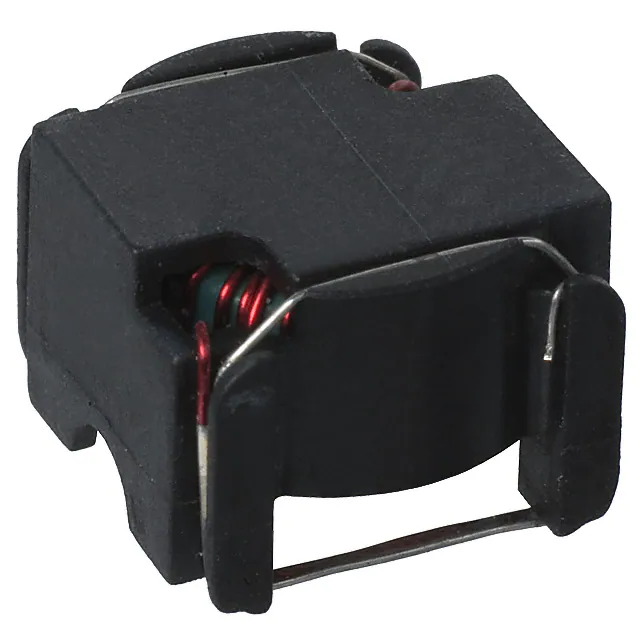

PE-53606FIXED IND 114UH 940MA 405MOHM SM |
3,454 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 114 µH | - | 940 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PE-53611FIXED IND 383UH 720MA 862MOHM SM |
1,838 | - |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 383 µH | - | 720 mA | - | Unshielded | 862mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53820SFIXED IND 115UH 670MA 400MOHM SM |
1,828 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

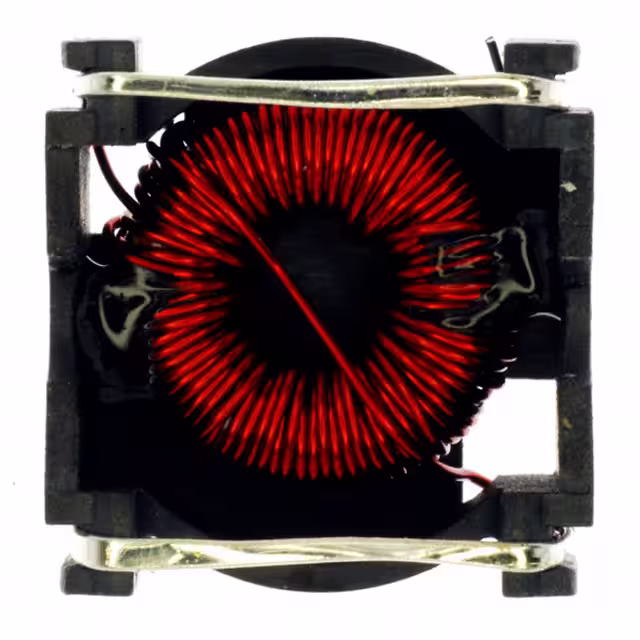

PE-53821SFIXED IND 78UH 820MA 300MOHM SMD |
2,629 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53932SFIXED IND 37UH 2.24A 100MOHM SMD |
2,660 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53933SFIXED IND 24UH 2.74A 70 MOHM SMD |
4,413 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53935SFIXED IND 250UH 1.5A 230MOHM SMD |
1,088 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54036SFIXED IND 168UH 1.81A 180MOHM SM |
3,199 | - |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
