Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

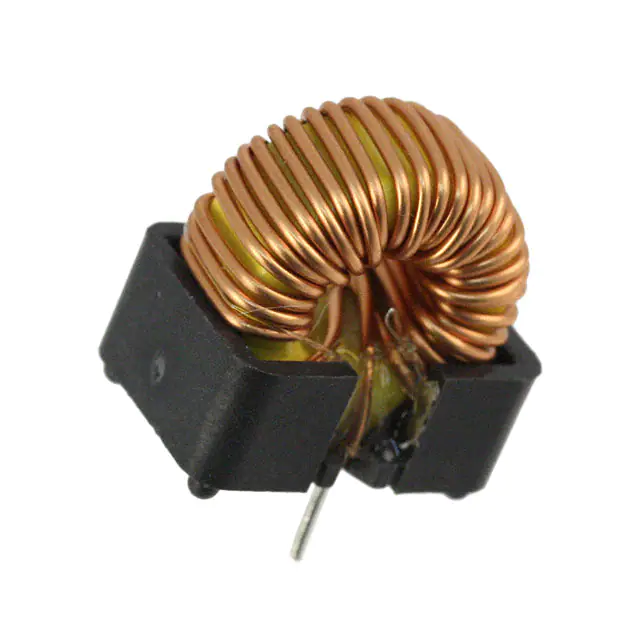

PE-53112NLFIXED IND 47UH 3A 50 MOHM TH |
1,052 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.700" (17.78mm) |
|
PE-53819NLFIXED IND 173UH 540MA 600MOHM TH |
1,147 | - |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|

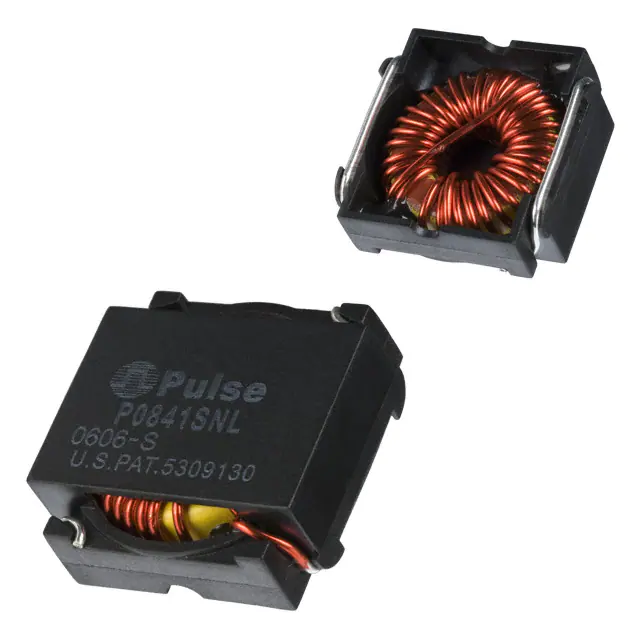

P0841SNLFIXED IND 22.8UH 4.9A 36MOHM SMD |
4,974 | - |
|
Datasheet | HCI-68 | Nonstandard | Tube | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.400" (10.16mm) |
|
PE-53830SNLTFIXED IND 77UH 1.54A 200MOHM SMD |
515 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 1.54 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53932SNLTFIXED IND 37UH 2.24A 100MOHM SMD |
1,201 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53829SNLTFIXED IND 112UH 1.26A 300MOHM SM |
1,566 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PA2729.203NLFIXED IND 20.7UH 8.5A 12MOHM SMD |
1,015 | - |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 20.7 µH | ±15% | 8.5 A | 10.7A | Shielded | 12mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

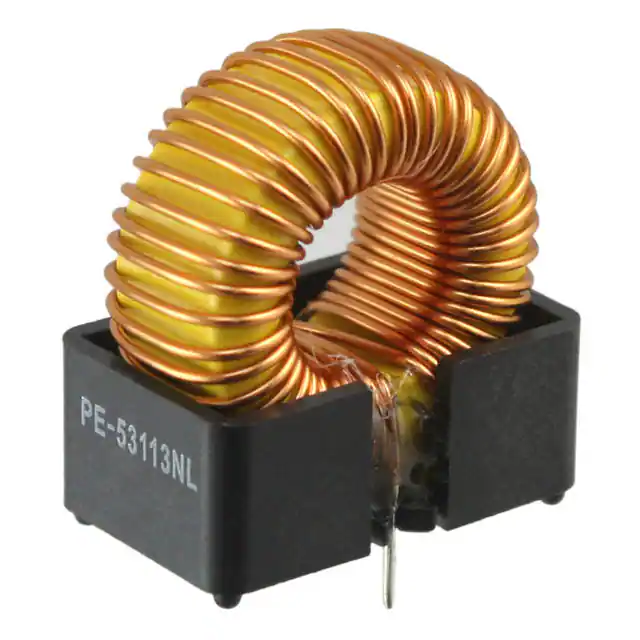

PE-53113NLFIXED IND 150UH 2A 100 MOHM TH |
559 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|

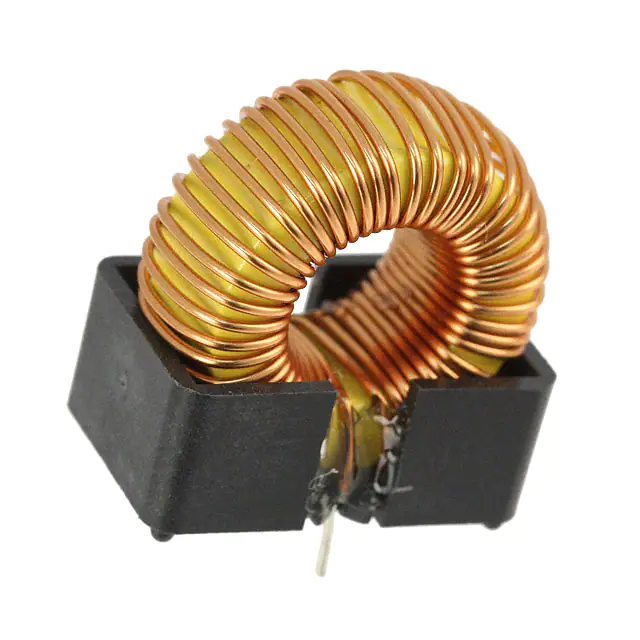

PE-53115NLFIXED IND 150UH 3A 100 MOHM TH |
327 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 150 µH | ±20% | 3 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PE-53932SNLFIXED IND 37UH 2.24A 100MOHM SMD |
258 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
