Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB2020.333NLFIXED IND 33UH 6.5A 29 MOHM SMD |
1,498 | - |
|
Datasheet | PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 33 µH | ±20% | 6.5 A | 10A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
PG0936.471NLFIXED IND 470NH 40A 0.87MOHM SMD |
3,323 | - |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 470 nH | ±20% | 40 A | 65A | Unshielded | 0.87mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PE-54038SNLFIXED IND 77UH 2.7A 90 MOHM SMD |
4,875 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.102NLFIXED IND 1UH 40A 1.4 MOHM SMD |
2,251 | - |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 40 A | 70A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
PE-51514NLFIXED IND 32UH 6.6A 25 MOHM TH |
3,297 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 32 µH | - | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|

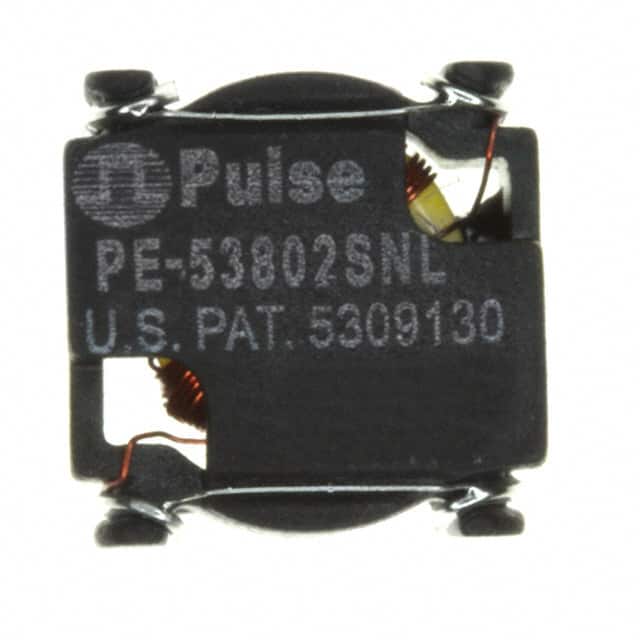

PE-53802SNLFIXED IND 178UH 160MA 2.8OHM SMD |
2,295 | - |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 178 µH | ±20% | 160 mA | - | Shielded | 2.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PE-51513NLFIXED IND 144UH 10A 32 MOHM TH |
1,115 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 144 µH | - | 10 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|
P0751.102NLFIXED IND 1UH 6.8A 10 MOHM SMD |
1,522 | - |
|
Datasheet | P0751NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
PF0464.223NLFIXED IND 22UH 1.85A 113MOHM SMD |
3,618 | - |
|
Datasheet | PF0464NL | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 1.85 A | 1.2A | Shielded | 113mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
PF0560.103NLFIXED IND 10UH 3.8A 35 MOHM SMD |
4,524 | - |
|
Datasheet | PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±30% | 3.8 A | 4.4A | Shielded | 35mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
