Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

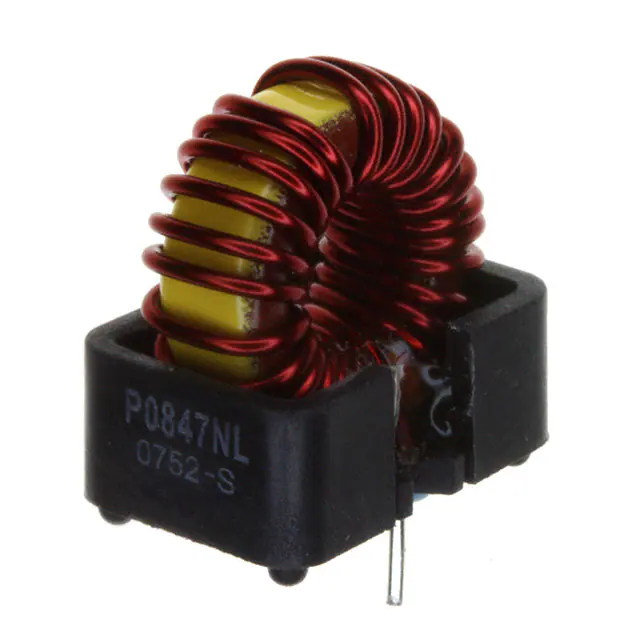

P0847NLFIXED IND 10UH 5A 25 MOHM TH |
812 | - |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 10 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.700" (17.78mm) |
|
PA2240.472NLTFIXED IND 4.7UH 13.6A 13.5 MOHM |
2,305 | - |
|
Datasheet | PA2240.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 13.6 A | 14A | Unshielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.276" (7.00mm) |
|
PE-53632NLTFIXED IND 16.2UH 2.7A 72MOHM SMD |
55,699 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 16.2 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53661NLTFIXED IND 2.5UH 8A 8.3 MOHM SMD |
1,350 | - |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.5 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PM2205.222NLTFIXED IND 2.2UH 13A 8.5MOHM SMD |
2,119 | - |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 13 A | 16A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
|
PM2205.821NLTFIXED IND 820NH 21A 4.18MOHM SMD |
1,380 | - |
|
Datasheet | PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 nH | ±20% | 21 A | 24A | Shielded | 4.18mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
PE-53819SNLTFIXED IND 173UH 540MA 600MOHM SM |
978 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53810SNLFIXED IND 176UH 300MA 1.4OHM SMD |
774 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 176 µH | ±20% | 300 mA | - | Shielded | 1.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

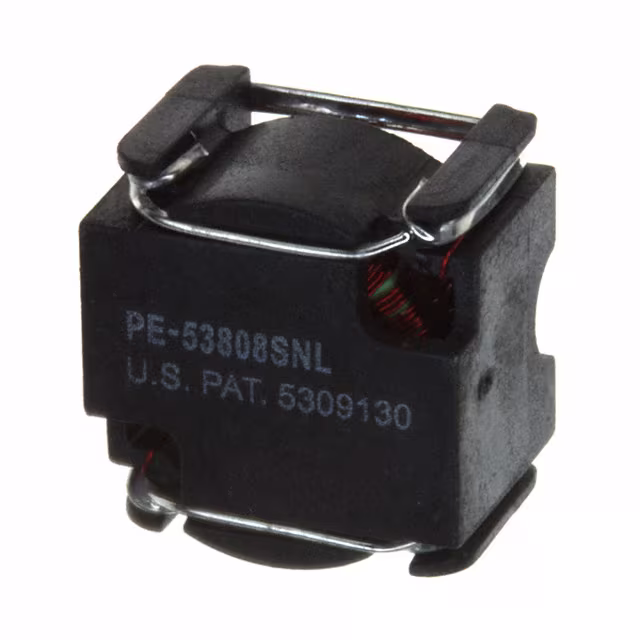

PE-53808SNLFIXED IND 374UH 200MA 2.7OHM SMD |
544 | - |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 374 µH | ±20% | 200 mA | - | Shielded | 2.7Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PG0936.113NLTFIXED IND 11UH 14A 7 MOHM SMD |
1,439 | - |
|
Datasheet | PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
