Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-6UH101MFIXED IND 100UH 600MA 360MOHM SM |
2,686 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 600 mA | - | Shielded | 360mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH121MFIXED IND 120UH 580MA 480MOHM SM |
1,601 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 580 mA | - | Shielded | 480mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH391MFIXED IND 390UH 300MA 1.5OHM SMD |
2,948 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±20% | 300 mA | - | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH561MFIXED IND 560UH 260MA 2.53OHM SM |
4,938 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 µH | ±20% | 260 mA | - | Shielded | 2.53Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|
|
ELL-6UH821MFIXED IND 820UH 200MA 3.14OHM SM |
2,847 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 200 mA | - | Shielded | 3.14Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.197" (5.00mm) |
|

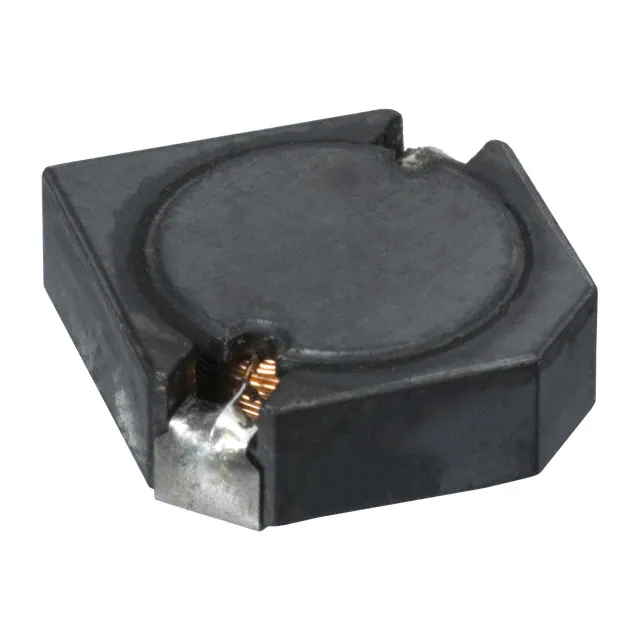

ELL-CTV1R2NFIXED IND 1.2UH 6.5A 4.6MOHM SMD |
2,421 | - |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 6.5 A | - | Shielded | 4.6mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV2R7NFIXED IND 2.7UH 5.7A 7 MOHM SMD |
2,566 | - |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 5.7 A | - | Shielded | 7mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV3R9NFIXED IND 3.9UH 5.6A 8.5MOHM SMD |
4,565 | - |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 5.6 A | - | Shielded | 8.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
ELL-CTV150MFIXED IND 15UH 3.1A 25 MOHM SMD |
2,127 | - |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | - | Shielded | 25mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

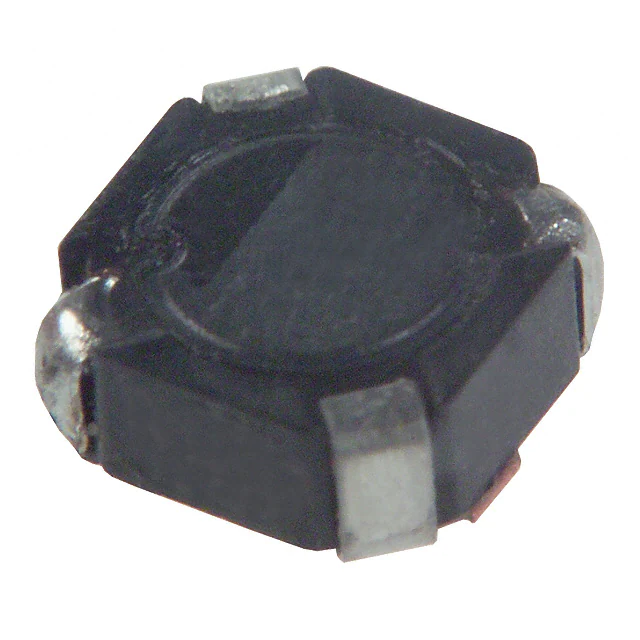

ELL-4GM470MFIXED IND 47UH 260MA 1.05OHM SMD |
2,883 | - |
|
Datasheet | M | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 260 mA | - | Shielded | 1.05Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
