Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELL-4FG4R7NAFIXED IND 4.7UH 1A 160 MOHM SMD |
1,026 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1 A | 1A | Shielded | 160mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG6R8NAFIXED IND 6.8UH 860MA 220MOHM SM |
3,290 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 860 mA | 800mA | Shielded | 220mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG100MAFIXED IND 10UH 750MA 290MOHM SMD |
4,371 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 750 mA | 700mA | Shielded | 290mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG220MAFIXED IND 22UH 500MA 620MOHM SMD |
2,984 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 500 mA | 420mA | Shielded | 620mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG470MAFIXED IND 47UH 330MA 1.6 OHM SMD |
4,808 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 330 mA | 290mA | Shielded | 1.6Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

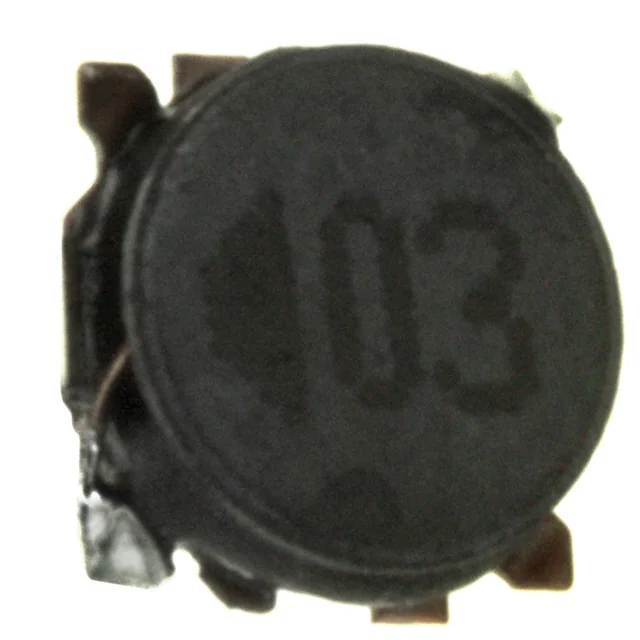

ELL-4GG2R2NFIXED IND 2.2UH 1.4A 88 MOHM SMD |
2,089 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 1.4 A | 1.7A | Shielded | 88mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG3R3NFIXED IND 3.3UH 1.2A 110MOHM SMD |
3,021 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.2 A | 1.5A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG4R7NFIXED IND 4.7UH 1A 160 MOHM SMD |
3,838 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1 A | 1.2A | Shielded | 160mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG6R8NFIXED IND 6.8UH 930MA 200MOHM SM |
1,128 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 930 mA | 1.05A | Shielded | 200mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
|
|
ELL-4GG100MFIXED IND 10UH 770MA 250MOHM SMD |
1,127 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 770 mA | 900mA | Shielded | 250mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.055" (1.40mm) |
