Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

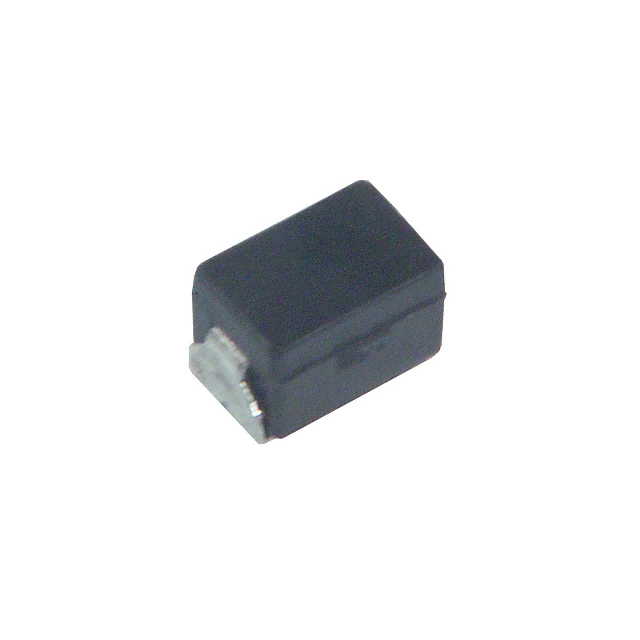

ELJ-ND68NKFFIXED IND 68NH 340MA 570MOHM SMD |
4,366 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 68 nH | ±10% | 340 mA | - | Unshielded | 570mOhm Max | 15 @ 100MHz | 1.45GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-ND82NKFFIXED IND 82NH 330MA 630MOHM SMD |
1,110 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 82 nH | ±10% | 330 mA | - | Unshielded | 630mOhm Max | 15 @ 100MHz | 1.1GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR10KFFIXED IND 100NH 285MA 860MOHM SM |
3,453 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 100 nH | ±10% | 285 mA | - | Unshielded | 860mOhm Max | 8 @ 25.2MHz | 800MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR12KFFIXED IND 120NH 275MA 990MOHM SM |
4,935 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 120 nH | ±10% | 275 mA | - | Unshielded | 990mOhm Max | 8 @ 25.2MHz | 600MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR18KFFIXED IND 180NH 195MA 1.61OHM SM |
1,318 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 180 nH | ±10% | 195 mA | - | Unshielded | 1.61Ohm Max | 10 @ 25.2MHz | 600MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR22KFFIXED IND 220NH 170MA 1.84OHM SM |
2,785 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 220 nH | ±10% | 170 mA | - | Unshielded | 1.84Ohm Max | 10 @ 25.2MHz | 500MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR27KFFIXED IND 270NH 165MA 1.95OHM SM |
4,971 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 270 nH | ±10% | 165 mA | - | Unshielded | 1.95Ohm Max | 10 @ 25.2MHz | 300MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR33KFFIXED IND 330NH 160MA 2.16OHM SM |
3,501 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 330 nH | ±10% | 160 mA | - | Unshielded | 2.16Ohm Max | 10 @ 25.2MHz | 200MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR39KFFIXED IND 390NH 150MA 2.37OHM SM |
1,593 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 390 nH | ±10% | 150 mA | - | Unshielded | 2.37Ohm Max | 10 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR47KFFIXED IND 470NH 145MA 2.56OHM SM |
4,464 | - |
|
Datasheet | ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 470 nH | ±10% | 145 mA | - | Unshielded | 2.56Ohm Max | 10 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
