Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P3M6R8KVNFIXED IND 6.8UH 4.5A 50.16 MOHM |
2,278 | - |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 4.5 A | 8.1A | Shielded | 50.16mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M150KVNFIXED IND 15UH 3A 109.12MOHM SMD |
4,557 | - |
|
Datasheet | PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 3 A | 5.1A | Shielded | 109.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
ETQ-P4M150KFNFIXED IND 15UH 4.2A 70.18MOHM SM |
2,633 | - |
|
Datasheet | PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 4.2 A | 6.7A | Shielded | 70.18mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M3R3KFNFIXED IND 3.3UH 9.2A 14.41 MOHM |
2,543 | - |
|
Datasheet | PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 9.2 A | 12A | Shielded | 14.41mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M4R7KFNFIXED IND 4.7UH 7.3A 22.77 MOHM |
2,951 | - |
|
Datasheet | PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.3 A | 9.3A | Shielded | 22.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M100KFNFIXED IND 10UH 5.2A 44.44MOHM SM |
2,062 | - |
|
Datasheet | PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.2 A | 8.1A | Shielded | 44.44mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|

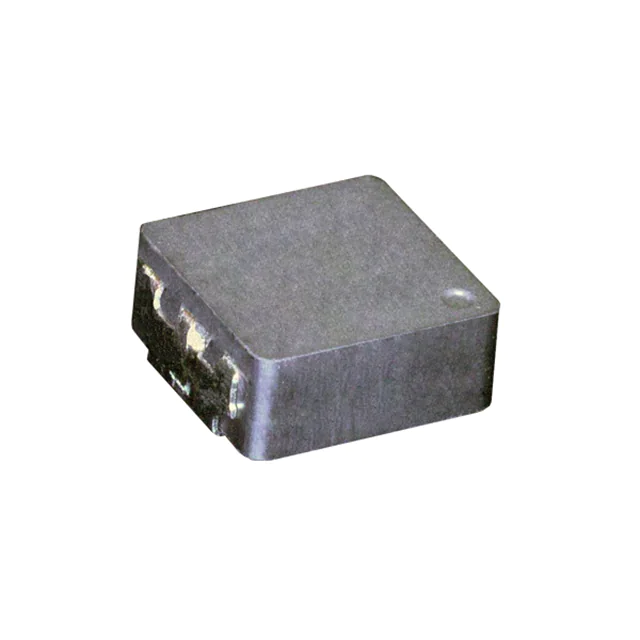

ETQ-P4M6R8KVKFIXED IND 6.8UH 6.9A 25.85 MOHM |
13,770 | - |
|
Datasheet | PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.9 A | 11A | Shielded | 25.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4M470KFMFIXED IND 47UH 2.9A 163.46 MOHM |
9,448 | - |
|
Datasheet | PCC-M0748M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.9 A | 3.7A | Shielded | 163.46mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M100KVKFIXED IND 10UH 5.2A 45.76MOHM SM |
6,596 | - |
|
Datasheet | PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.2 A | 9.1A | Shielded | 45.76mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4M100KFMFIXED IND 10UH 6A 39.6 MOHM SMD |
2,751 | - |
|
Datasheet | PCC-M0748M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 6 A | 9.6A | Shielded | 39.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
