Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-FA6R8JFFIXED IND 6.8UH 150MA 1.8OHM SMD |
4,239 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±5% | 150 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 45MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FA8R2JFFIXED IND 8.2UH 140MA 2 OHM SMD |
3,958 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±5% | 140 mA | - | Unshielded | 2Ohm Max | 30 @ 7.96MHz | 40MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-QF2N2DFFIXED IND 2.2NH 400MA 90MOHM SMD |
2,073 | - |
|
Datasheet | QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 400 mA | - | Unshielded | 90mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF5N6DFFIXED IND 5.6NH 340MA 190MOHM SM |
1,494 | - |
|
Datasheet | QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 340 mA | - | Unshielded | 190mOhm Max | 10 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF33NJFFIXED IND 33NH 170MA 1.4 OHM SMD |
4,250 | - |
|
Datasheet | QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 33 nH | ±5% | 170 mA | - | Unshielded | 1.4Ohm Max | 10 @ 100MHz | 1.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-FAR39KF2FIXED IND 390NH 305MA 390MOHM SM |
1,099 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±10% | 305 mA | - | Unshielded | 390mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FAR56KF2FIXED IND 560NH 275MA 490MOHM SM |
1,184 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±10% | 275 mA | - | Unshielded | 490mOhm Max | 25 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FAR68KF2FIXED IND 680NH 260MA 550MOHM SM |
1,624 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±10% | 260 mA | - | Unshielded | 550mOhm Max | 25 @ 25.2MHz | 135MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FAR82KF2FIXED IND 820NH 245MA 610MOHM SM |
3,571 | - |
|
Datasheet | FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 nH | ±10% | 245 mA | - | Unshielded | 610mOhm Max | 25 @ 25.2MHz | 125MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

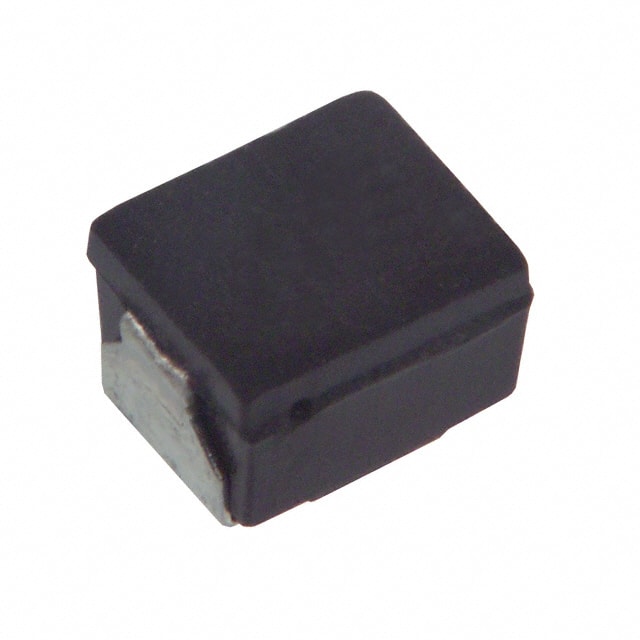

ELJ-SA100KFFIXED IND 10UH 18MA 1.8 OHM SMD |
3,823 | - |
|
Datasheet | SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±10% | 18 mA | - | Shielded | 1.8Ohm Max | 40 @ 5MHz | 30MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
