Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402-2N0KFIXED IND 2NH 1.04A 70 MOHM SMD |
1,444 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-2N2KFIXED IND 2.2NH 960MA 70MOHM SMD |
3,993 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | 960 mA | - | Unshielded | 70mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-3N6KFIXED IND 3.6NH 840MA 66MOHM SMD |
2,632 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 3.6 nH | ±10% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-10NKFIXED IND 10NH 680MA 195MOHM SMD |
4,185 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 10 nH | ±10% | 680 mA | - | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-12NKFIXED IND 12NH 640MA 120MOHM SMD |
4,027 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 12 nH | ±10% | 640 mA | - | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402-15NKFIXED IND 15NH 560MA 172MOHM SMD |
2,579 | - |
|
Datasheet | 402 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 560 mA | - | Unshielded | 172mOhm Max | 24 @ 250MHz | 3.28GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|

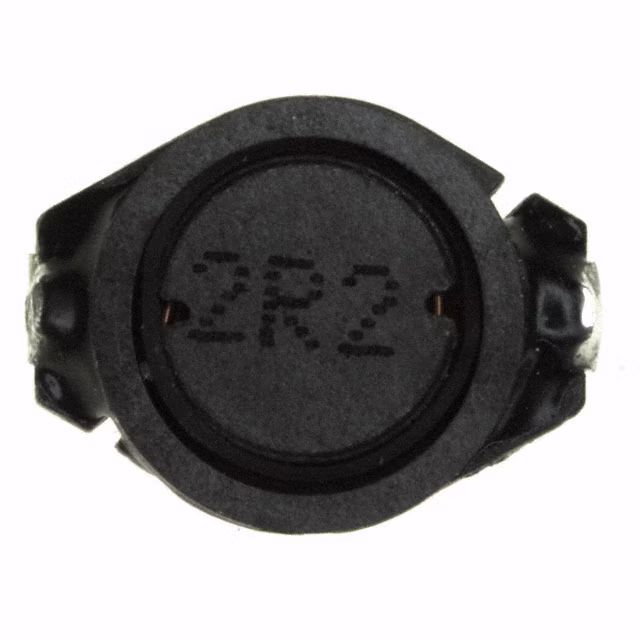

SDS130R-222NFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,462 | - |
|
Datasheet | SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
|
SDS130-224MFIXED IND 220UH 400MA 2.7OHM SMD |
4,917 | - |
|
Datasheet | SDS130 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | - | Shielded | 2.7Ohm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
3225R-182KFIXED IND 1.8UH 454MA 900MOHM SM |
3,160 | - |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±10% | 454 mA | - | Unshielded | 900mOhm Max | 25 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
|
|
3225R-682KFIXED IND 6.8UH 321MA 1.8OHM SMD |
3,217 | - |
|
Datasheet | 3225R | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 6.8 µH | ±10% | 321 mA | - | Unshielded | 1.8Ohm Max | 25 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.126" L x 0.094" W (3.20mm x 2.40mm) | 0.094" (2.40mm) |
