Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4564-101KFIXED IND 100UH 200MA 2 OHM TH |
1,763 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 5.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-121KFIXED IND 120UH 200MA 2 OHM TH |
2,778 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 120 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 4.5MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|

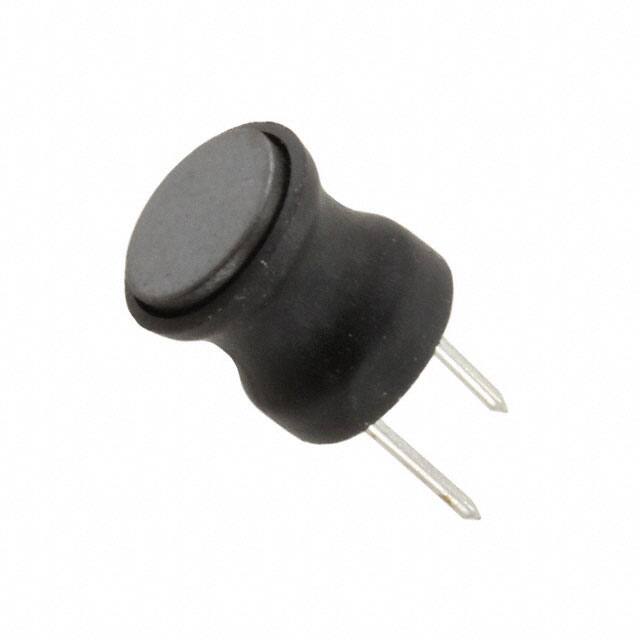

4564-151KFIXED IND 150UH 200MA 2 OHM TH |
3,605 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±10% | 200 mA | - | Unshielded | 2Ohm Max | 80 @ 796kHz | 3.8MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-181KFIXED IND 180UH 200MA 3 OHM TH |
4,689 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 180 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 3.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-221KFIXED IND 220UH 200MA 3 OHM TH |
3,629 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-271KFIXED IND 270UH 200MA 3 OHM TH |
3,081 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 270 µH | ±10% | 200 mA | - | Unshielded | 3Ohm Max | 80 @ 796kHz | 2.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-331KFIXED IND 330UH 200MA 4 OHM TH |
3,517 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 330 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.3MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-391KFIXED IND 390UH 200MA 4 OHM TH |
3,343 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 390 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 2.1MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-471KFIXED IND 470UH 200MA 4 OHM TH |
1,163 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 470 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.9MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
|
|
4564-561KFIXED IND 560UH 200MA 4 OHM TH |
2,787 | - |
|
Datasheet | 4564 | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 560 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.7MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.340" Dia (8.64mm) | 0.433" (11.00mm) |
