Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812R-391JFIXED IND 390NH 535MA 700MOHM SM |
3,794 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 390 nH | ±5% | 535 mA | - | Unshielded | 700mOhm Max | 30 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-470KFIXED IND 47NH 870MA 200MOHM SMD |
3,600 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 47 nH | ±10% | 870 mA | - | Unshielded | 200mOhm Max | 30 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-471JFIXED IND 470NH 501MA 800MOHM SM |
1,619 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±5% | 501 mA | - | Unshielded | 800mOhm Max | 30 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-560KFIXED IND 56NH 770MA 250MOHM SMD |
4,296 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 56 nH | ±10% | 770 mA | - | Unshielded | 250mOhm Max | 30 @ 50MHz | 850MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-561JFIXED IND 560NH 409MA 1.2OHM SMD |
3,621 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±5% | 409 mA | - | Unshielded | 1.2Ohm Max | 30 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-680KFIXED IND 68NH 770MA 250MOHM SMD |
4,221 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 68 nH | ±10% | 770 mA | - | Unshielded | 250mOhm Max | 25 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-681JFIXED IND 680NH 379MA 1.4OHM SMD |
1,240 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±5% | 379 mA | - | Unshielded | 1.4Ohm Max | 30 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-820KFIXED IND 82NH 700MA 250MOHM SMD |
4,540 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 82 nH | ±10% | 700 mA | - | Unshielded | 250mOhm Max | 25 @ 50MHz | 750MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|
|
1812R-821JFIXED IND 820NH 354MA 1.6OHM SMD |
1,980 | - |
|
Datasheet | 1812R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 30 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.190" (4.83mm) |
|

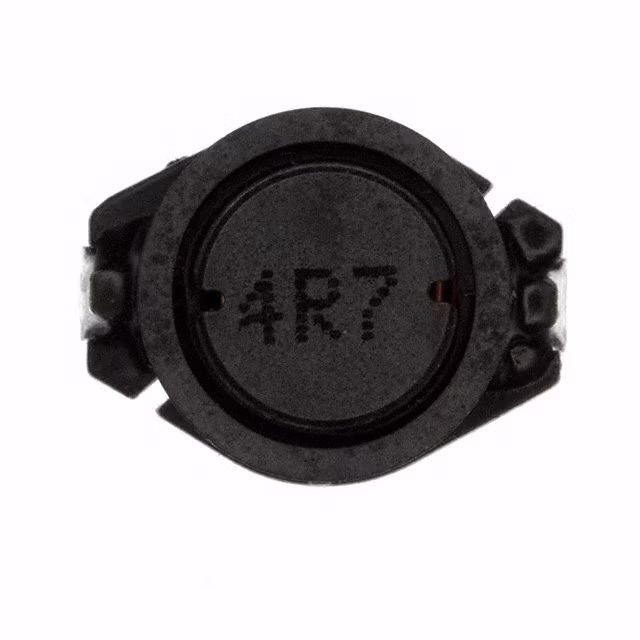

SDS130R-472NFIXED IND 4.7UH 2.5A 78 MOHM SMD |
2,791 | - |
|
Datasheet | SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.5 A | - | Shielded | 78mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
