Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTHF100-40SMFIXED IND 100UH 1.6A 160MOHM SMD |
3,187 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.6 A | - | Shielded | 160mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF150-40SMFIXED IND 150UH 1.45A 190MOHM SM |
2,675 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.45 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF200-40SMFIXED IND 200UH 1.12A 320MOHM SM |
2,816 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 200 µH | ±10% | 1.12 A | - | Shielded | 320mOhm Max | - | 3MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF250-40SMFIXED IND 250UH 1.05A 360MOHM SM |
1,056 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 250 µH | ±10% | 1.05 A | - | Shielded | 360mOhm Max | - | 2.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.570" L x 0.560" W (14.48mm x 14.22mm) | 0.400" (10.16mm) |
|
|
PTHF10-30SMFIXED IND 10UH 2.56A 50 MOHM SMD |
3,829 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 10 µH | ±10% | 2.56 A | - | Shielded | 50mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W x 0.400" H (11.18mm x 11.18mm x 10.16mm) | - |
|
|
PTHF25-30SMFIXED IND 25UH 2.16A 70 MOHM SMD |
2,981 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 25 µH | ±10% | 2.16 A | - | Shielded | 70mOhm Max | - | 25MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|

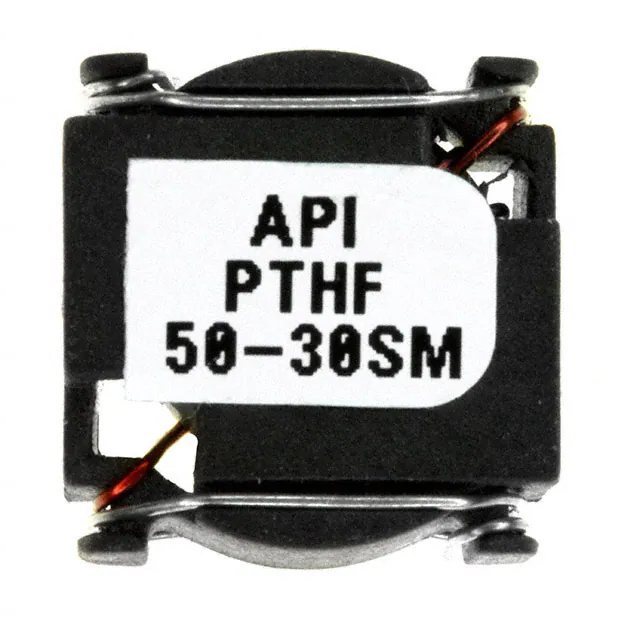

PTHF50-30SMFIXED IND 50UH 1.81A 100MOHM SMD |
2,418 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | - | 50 µH | ±10% | 1.81 A | - | Shielded | 100mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF75-30SMFIXED IND 75UH 1.62A 130MOHM SMD |
2,148 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 75 µH | ±10% | 1.62 A | - | Shielded | 130mOhm Max | - | 7MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF100-30SMFIXED IND 100UH 1.5A 150MOHM SMD |
2,484 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 100 µH | ±10% | 1.5 A | - | Shielded | 150mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
|
|
PTHF150-30SMFIXED IND 150UH 1.33A 190MOHM SM |
4,977 | - |
|
Datasheet | PTHF | Nonstandard | Bulk | Active | Toroidal | High Saturation | 150 µH | ±10% | 1.33 A | - | Shielded | 190mOhm Max | - | 3.5MHz | - | - | 1 kHz | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | 0.400" (10.16mm) |
