Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3HCR-27FIXED IND 27UH 3A 35 MOHM TH |
1,510 | - |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 0.875" L (20.62mm x 22.23mm) | - |
|
|
3HCR-5FIXED IND 5UH 3A 15 MOHM TH |
2,284 | - |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 3 A | 19A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|
|
3HCR-50FIXED IND 50UH 3A 50 MOHM TH |
1,889 | - |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3 A | 12A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|
|
3HCR-500FIXED IND 500UH 3A 130 MOHM TH |
1,596 | - |
|
Datasheet | HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 3 A | 1A | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" Dia x 1.625" L (24.13mm x 41.28mm) | - |
|
5HC-10FIXED IND 10UH 5A 15 MOHM TH |
1,310 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 5 A | 18A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 1.125" L (16.26mm x 28.58mm) | - |
|
5HC-100FIXED IND 100UH 5A 50 MOHM TH |
4,764 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 5 A | 7A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 1.375" L (22.23mm x 34.93mm) | - |
|
5HC-150FIXED IND 150UH 5A 60 MOHM TH |
2,890 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 5 A | 5A | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 1.625" L (22.23mm x 41.28mm) | - |
|
5HC-250FIXED IND 250UH 5A 75 MOHM TH |
3,159 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 5 A | 3A | Unshielded | 75mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.100" Dia x 1.625" L (27.94mm x 41.28mm) | - |
|

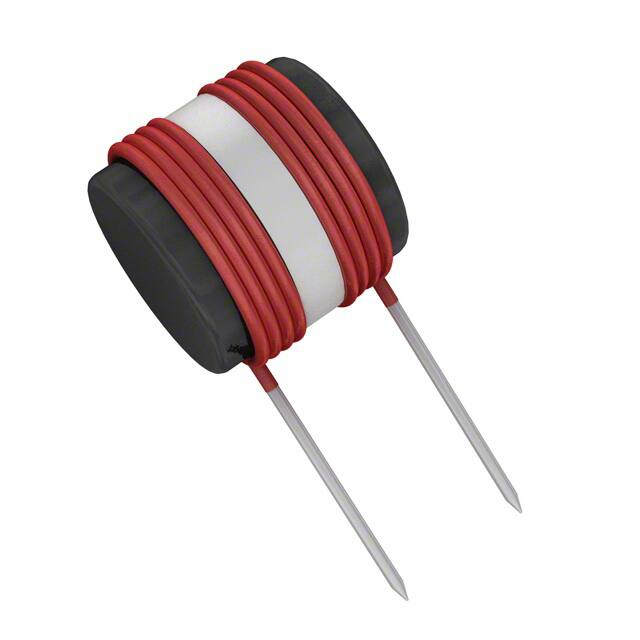

5HC-27FIXED IND 27UH 5A 25 MOHM TH |
2,124 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5 A | 15A | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.875" Dia x 0.875" L (22.23mm x 22.23mm) | - |
|
5HC-5FIXED IND 5UH 5A 12 MOHM TH |
4,143 | - |
|
Datasheet | HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 5 A | 20A | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.875" L (16.26mm x 22.23mm) | - |
