Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160-221KSFIXED IND 220NH 1.07A 110MOHM SM |
1,346 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 220 nH | ±10% | 1.07 A | - | Unshielded | 110mOhm Max | 50 @ 25MHz | 340MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|

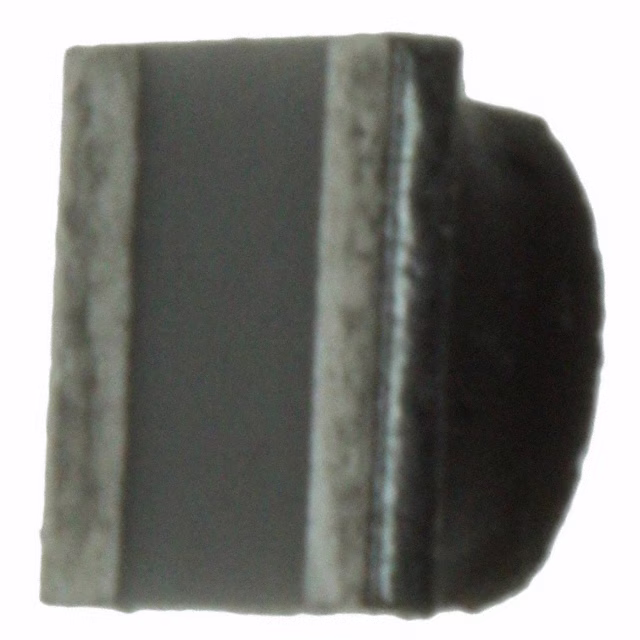

160-271KSFIXED IND 270NH 1.025A 120 MOHM |
2,750 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 270 nH | ±10% | 1.025 A | - | Unshielded | 120mOhm Max | 50 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-301KSFIXED IND 300NH 985MA 130MOHM SM |
4,715 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 300 nH | ±10% | 985 mA | - | Unshielded | 130mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-331KSFIXED IND 330NH 950MA 140MOHM SM |
2,325 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 330 nH | ±10% | 950 mA | - | Unshielded | 140mOhm Max | 50 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-361KSFIXED IND 360NH 915MA 150MOHM SM |
4,479 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 360 nH | ±10% | 915 mA | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-391KSFIXED IND 390NH 890MA 160MOHM SM |
2,423 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 390 nH | ±10% | 890 mA | - | Unshielded | 160mOhm Max | 50 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-421KSFIXED IND 430NH 860MA 170MOHM SM |
1,676 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 430 nH | ±10% | 860 mA | - | Unshielded | 170mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|

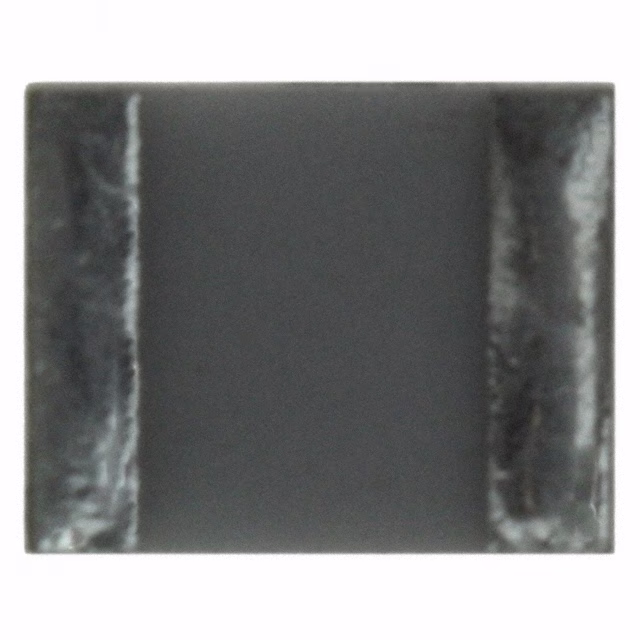

160-471KSFIXED IND 470NH 835MA 180MOHM SM |
4,111 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 470 nH | ±10% | 835 mA | - | Unshielded | 180mOhm Max | 50 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-561KSFIXED IND 560NH 795MA 200MOHM SM |
2,530 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 560 nH | ±10% | 795 mA | - | Unshielded | 200mOhm Max | 50 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
|
|
160-681KSFIXED IND 680NH 740MA 230MOHM SM |
3,316 | - |
|
Datasheet | 160 | Nonstandard | Bulk | Active | - | Iron | 680 nH | ±10% | 740 mA | - | Unshielded | 230mOhm Max | 50 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.150" L x 0.120" W (3.81mm x 3.05mm) | 0.080" (2.03mm) |
