Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2727R-25FFIXED IND 1MH 84MA 27 OHM TH |
3,269 | - |
|
Datasheet | 2727R | Radial, Vertical | Bulk | Active | Toroidal | Iron | 1 mH | ±1% | 84 mA | - | Unshielded | 27Ohm Max | 50 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.280" L x 0.160" W (7.11mm x 4.06mm) | 0.300" (7.62mm) |
|

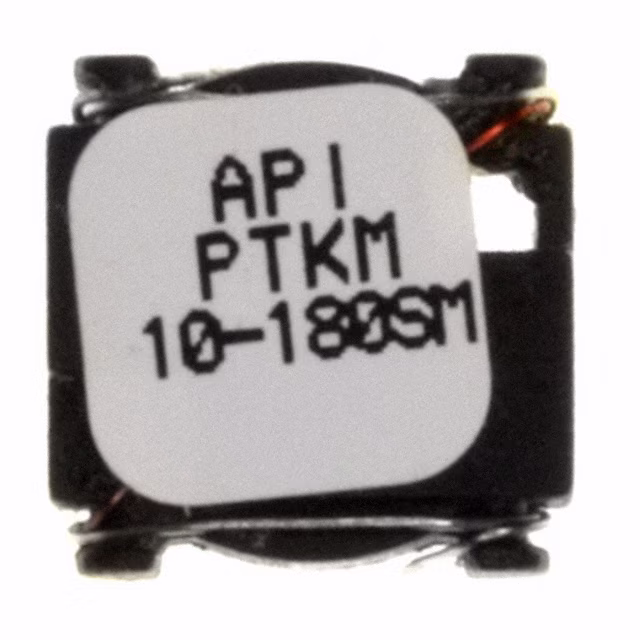

PTKM10-180SMFIXED IND 10UH 1.6A 100 MOHM SMD |
3,077 | - |
|
Datasheet | PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 10 µH | ±10% | 1.6 A | 430mA | Shielded | 100mOhm Max | - | 35MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PTKM25-180SMFIXED IND 25UH 1.33A 150MOHM SMD |
1,790 | - |
|
Datasheet | PTKM-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 25 µH | ±10% | 1.33 A | 250mA | Shielded | 150mOhm Max | - | 30MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
SPD73-242MFIXED IND 2.4UH 2.69A 32MOHM SMD |
4,276 | - |
|
Datasheet | SPD73 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.4 µH | ±20% | 2.69 A | 2.69A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
LLST-125FIXED IND 125UH 1A 250 MOHM SMD |
2,923 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 125 µH | ±15% | 1 A | 640mA | Shielded | 250mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-140FIXED IND 140UH 1A 250 MOHM SMD |
2,427 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 140 µH | ±15% | 1 A | 560mA | Shielded | 250mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
LLST-200FIXED IND 200UH 795MA 400MOHM SM |
2,367 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 200 µH | ±15% | 795 mA | 460mA | Shielded | 400mOhm Max | - | 3.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-350FIXED IND 350UH 650MA 625MOHM SM |
3,555 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 350 µH | ±15% | 650 mA | 360mA | Shielded | 625mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-400FIXED IND 400UH 280MA 700MOHM SM |
1,673 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 400 µH | ±15% | 280 mA | 500mA | Shielded | 700mOhm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
LLST-47FIXED IND 47UH 1.45A 120MOHM SMD |
4,699 | - |
|
Datasheet | LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 47 µH | ±15% | 1.45 A | 1A | Shielded | 120mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
