Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT100R-1000-VMFIXED IND 100UH 3.5A 80 MOHM TH |
4,729 | - |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 3.5 A | - | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.230" (31.24mm) |
|
|
PT150-1250-VMFIXED IND 150UH 5.7A 60 MOHM TH |
4,411 | - |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 5.7 A | - | Shielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.380" (35.05mm) |
|
|
PT150R-1250-VMFIXED IND 150UH 5.7A 60 MOHM TH |
2,869 | - |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 5.7 A | - | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.380" (35.05mm) |
|
|
PT150R-1500-VMFIXED IND 150UH 7.7A 50 MOHM TH |
4,113 | - |
|
Datasheet | PTR | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 7.7 A | - | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
|
|
PT25-800-VMFIXED IND 25UH 6.6A 25 MOHM TH |
2,959 | - |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 25 µH | ±15% | 6.6 A | - | Shielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT25-900-VMFIXED IND 25UH 7A 20 MOHM TH |
1,455 | - |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 25 µH | ±15% | 7 A | - | Shielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.010" (25.65mm) |
|
|
PT25R-680-VMFIXED IND 25UH 4.4A 35 MOHM TH |
1,397 | - |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 4.4 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.790" (20.07mm) |
|

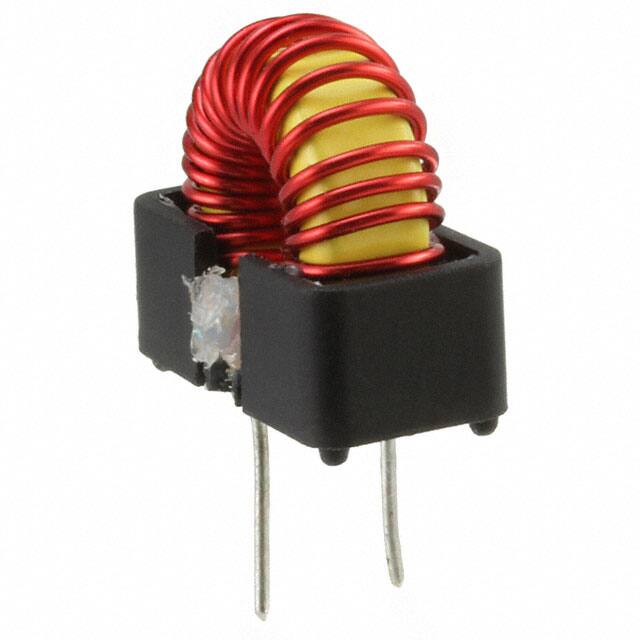

PT25R-800-VMFIXED IND 25UH 6.6A 25 MOHM TH |
1,622 | - |
|
Datasheet | PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT300-1200-VMFIXED IND 300UH 3.3A 150 MOHM TH |
2,921 | - |
|
Datasheet | PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 3.3 A | - | Shielded | 150mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.330" (33.78mm) |
|
|
PT300-1500-VMFIXED IND 300UH 5.5A 100 MOHM TH |
4,737 | - |
|
Datasheet | PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 5.5 A | - | Shielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
