Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

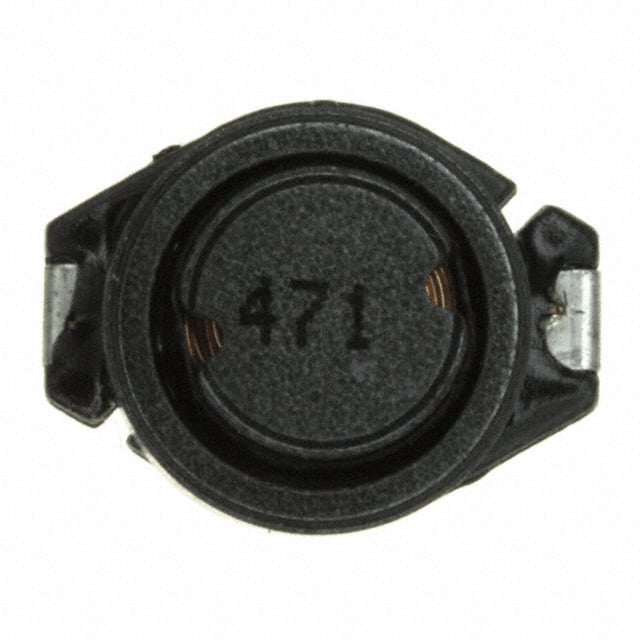

SDS850R-392NFIXED IND 3.9UH 2.1A 55 MOHM SMD |
3,070 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2.1 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-562NFIXED IND 5.6UH 1.95A 65MOHM SMD |
2,756 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.95 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-822NFIXED IND 8.2UH 1.75A 80MOHM SMD |
3,570 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.75 A | - | Shielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-103MFIXED IND 10UH 1.5A 100 MOHM SMD |
4,581 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-123MFIXED IND 12UH 1.4A 120 MOHM SMD |
3,198 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
SDS850R-153MFIXED IND 15UH 1.3A 140 MOHM SMD |
1,245 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-183MFIXED IND 18UH 1.2A 160 MOHM SMD |
3,631 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.2 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-223MFIXED IND 22UH 1.1A 180 MOHM SMD |
1,420 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | - | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-273MFIXED IND 27UH 1A 200 MOHM SMD |
3,210 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1 A | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
|
|
SDS850R-333MFIXED IND 33UH 920MA 240MOHM SMD |
2,788 | - |
|
Datasheet | SDS850R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 920 mA | - | Shielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.189" (4.80mm) |
