Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1025R-30KFIXED IND 2.7UH 355MA 550MOHM TH |
1,000 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.7 µH | ±10% | 355 mA | - | Unshielded | 550mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-08KFIXED IND 330NH 830MA 220MOHM TH |
1,924 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 830 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-24KFIXED IND 1.5UH 560MA 220MOHM TH |
465 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 1.5 µH | ±10% | 560 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
511-34JFIXED IND 3.6UH 325MA 2.15OHM TH |
989 | - |
|
Datasheet | 511 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.6 µH | ±5% | 325 mA | - | Unshielded | 2.15Ohm Max | 33 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
1025R-50KFIXED IND 18UH 149MA 3.1 OHM TH |
1,000 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±10% | 149 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-48KFIXED IND 15UH 157MA 2.8 OHM TH |
950 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±10% | 157 mA | - | Unshielded | 2.8Ohm Max | 45 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-02KFIXED IND 180NH 1.12A 120MOHM TH |
360 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±10% | 1.12 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0819R-24KFIXED IND 1UH 435MA 250 MOHM TH |
485 | - |
|
Datasheet | 0819R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 µH | ±10% | 435 mA | - | Unshielded | 250mOhm Max | 40 @ 25MHz | 190MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | - |
|
1210-221KFIXED IND 220NH 805MA 320MOHM SM |
268 | - |
|
Datasheet | 1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 805 mA | - | Unshielded | 320mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

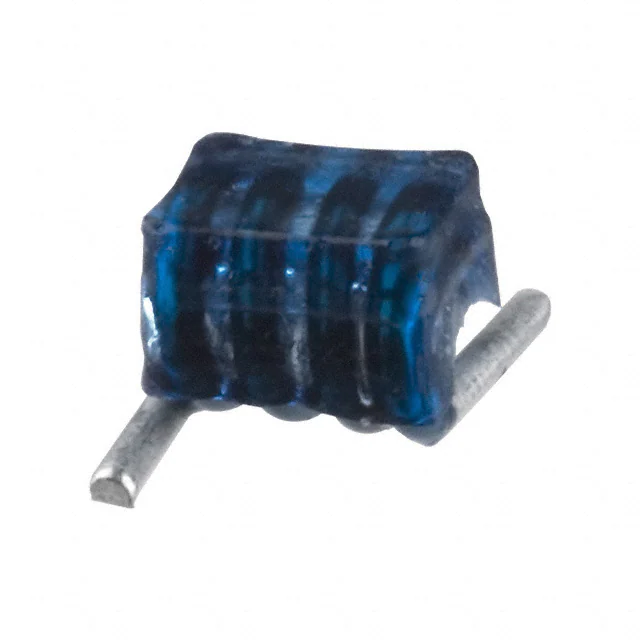

4426-7NCFIXED IND 22NH 3A SMD |
250 | - |
|
Datasheet | 4426 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 3 A | - | Unshielded | - | 102 @ 150MHz | 3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
