Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

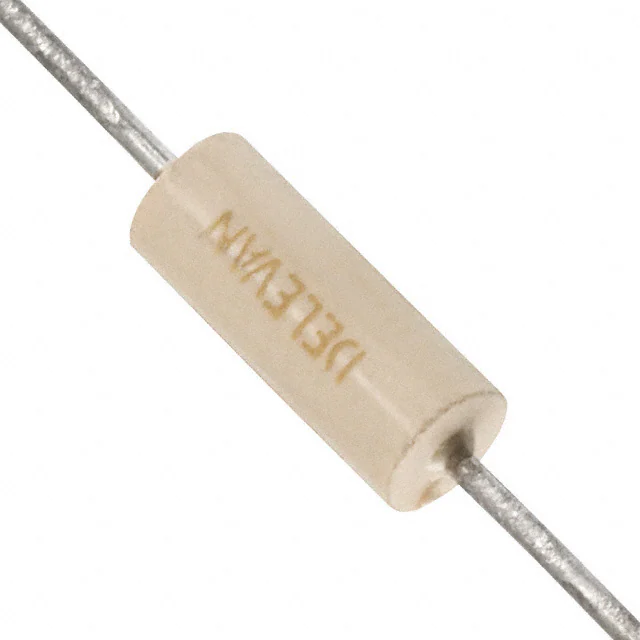

1025R-20KFIXED IND 1UH 390MA 1 OHM TH |
584 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 1 µH | ±10% | 390 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
1812R-392JFIXED IND 3.9UH 472MA 900MOHM SM |
7,301 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±5% | 472 mA | - | Unshielded | 900mOhm Max | 50 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-103JFIXED IND 10UH 354MA 1.6 OHM SMD |
3,973 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 50 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-154JFIXED IND 150UH 149MA 9 OHM SMD |
3,840 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±5% | 149 mA | - | Unshielded | 9Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-184JFIXED IND 180UH 145MA 9.5OHM SMD |
877 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±5% | 145 mA | - | Unshielded | 9.5Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-272JFIXED IND 2.7UH 517MA 750MOHM SM |
116 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±5% | 517 mA | - | Unshielded | 750mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1025R-68KFIXED IND 100UH 84MA 8 OHM TH |
8,854 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
1210R-104JFIXED IND 100UH 120MA 13 OHM SMD |
15,370 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±5% | 120 mA | - | Unshielded | 13Ohm Max | 30 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-103JFIXED IND 10UH 297MA 2.1 OHM SMD |
10,214 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 297 mA | - | Unshielded | 2.1Ohm Max | 30 @ 7.9MHz | 30MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-563JFIXED IND 56UH 152MA 8 OHM SMD |
1,995 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±5% | 152 mA | - | Unshielded | 8Ohm Max | 30 @ 2.5MHz | 11MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
