Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1331-471KFIXED IND 470NH 460MA 210MOHM SM |
3,647 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±10% | 460 mA | 460mA | Shielded | 210mOhm Max | 41 @ 25MHz | 220MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-472KFIXED IND 4.7UH 136MA 2.4OHM SMD |
2,362 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 136 mA | 136mA | Shielded | 2.4Ohm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-561KFIXED IND 560NH 440MA 230MOHM SM |
3,869 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 560 nH | ±10% | 440 mA | 440mA | Shielded | 230mOhm Max | 41 @ 25MHz | 210MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|

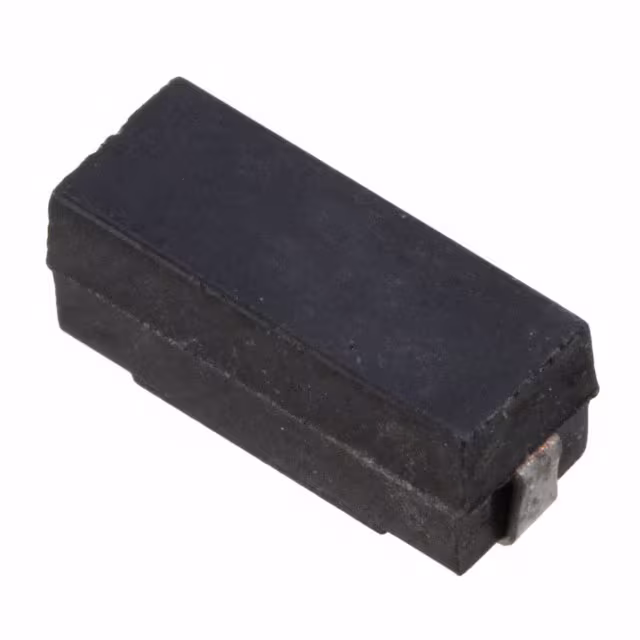

1331-562KFIXED IND 5.6UH 124MA 2.9OHM SMD |
3,261 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 124 mA | 124mA | Shielded | 2.9Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-681KFIXED IND 680NH 430MA 240MOHM SM |
3,697 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±10% | 430 mA | 430mA | Shielded | 240mOhm Max | 39 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-682KFIXED IND 6.8UH 118MA 3.2OHM SMD |
3,704 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±10% | 118 mA | 118mA | Shielded | 3.2Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-821KFIXED IND 820NH 405MA 270MOHM SM |
2,428 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 820 nH | ±10% | 405 mA | 405mA | Shielded | 270mOhm Max | 38 @ 25MHz | 165MHz | - | -55°C ~ 105°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
1331-822KFIXED IND 8.2UH 111MA 3.6OHM SMD |
4,028 | - |
|
Datasheet | 1331 | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±10% | 111 mA | 111mA | Shielded | 3.6Ohm Max | 50 @ 7.9MHz | 53MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
2510-48HFIXED IND 10UH 91MA 5.7 OHM SMD |
1,425 | - |
|
Datasheet | 2510 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±3% | 91 mA | - | Unshielded | 5.7Ohm Max | 35 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.245" L x 0.095" W (6.22mm x 2.41mm) | 0.110" (2.79mm) |
|
|
2510-50HFIXED IND 12UH 120MA 3.3 OHM SMD |
1,650 | - |
|
Datasheet | 2510 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 12 µH | ±3% | 120 mA | - | Unshielded | 3.3Ohm Max | 25 @ 2.5MHz | 29MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.245" L x 0.095" W (6.22mm x 2.41mm) | 0.110" (2.79mm) |
