Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 | - |
|
Datasheet | 1641R | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5500R-273KFIXED IND 27UH 6.3A 25 MOHM SMD |
600 | - |
|
Datasheet | 5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 6.3 A | 3.38A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
ER1025-06KSFIXED IND 270NH 960MA 160MOHM TH |
1,250 | - |
|
Datasheet | Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

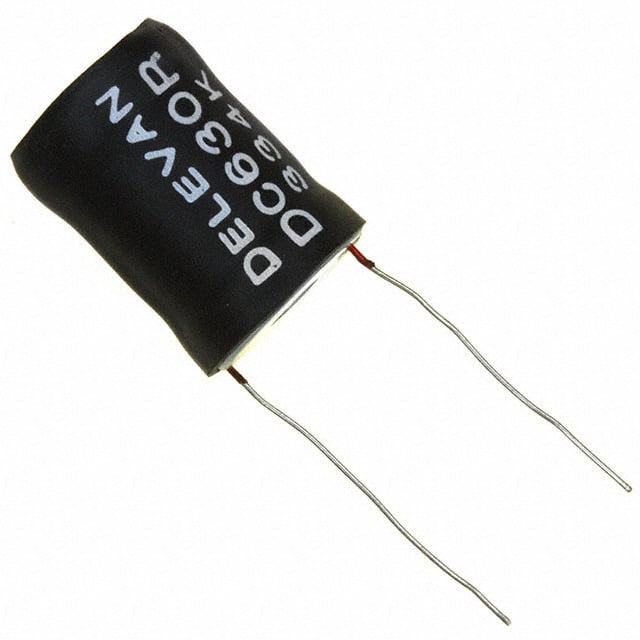

DC630R-334KFIXED IND 330UH 1.72A 315MOHM TH |
362 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.72 A | 3.8A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
4501R-128MFIXED IND 100UH 650MA 400MOHM SM |
562 | - |
|
Datasheet | 4501R | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 650 mA | 650mA | Shielded | 400mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.210" (5.33mm) |
|
ER1641-222KSFIXED IND 2.2UH 650MA 190MOHM TH |
463 | - |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 650 mA | - | Unshielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-472KSFIXED IND 4.7UH 380MA 550MOHM TH |
433 | - |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 380 mA | - | Unshielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
ER1641-221JSFIXED IND 220NH 1.1A 67 MOHM TH |
454 | - |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±5% | 1.1 A | - | Unshielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-181JSFIXED IND 180NH 1.3A 47 MOHM TH |
437 | - |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±5% | 1.3 A | - | Unshielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
HRSPD127-154MFIXED IND 150UH 1.4A 294MOHM SMD |
250 | - |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 294mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
