Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2474R-23LFIXED IND 68UH 1.56A 145 MOHM TH |
3,650 | - |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 68 µH | ±15% | 1.56 A | 770mA | Unshielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
S1008R-471KFIXED IND 470NH 815MA 170MOHM SM |
1,903 | - |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±10% | 815 mA | - | Shielded | 170mOhm Max | 40 @ 25MHz | 255MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
DC780R-333KFIXED IND 33UH 5.5A 29 MOHM TH |
2,034 | - |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | 19A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
1025R-32KFIXED IND 3.3UH 285MA 850MOHM TH |
4,986 | - |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 3.3 µH | ±10% | 285 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
1812R-152JFIXED IND 1.5UH 578MA 600MOHM SM |
4,584 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 578 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
S1812R-684KFIXED IND 680UH 79MA 32 OHM SMD |
3,223 | - |
|
Datasheet | S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 79 mA | - | Shielded | 32Ohm Max | 40 @ 790kHz | 2.6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPD127R-103MFIXED IND 10UH 5.4A 40 MOHM SMD |
2,389 | - |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 5.4A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

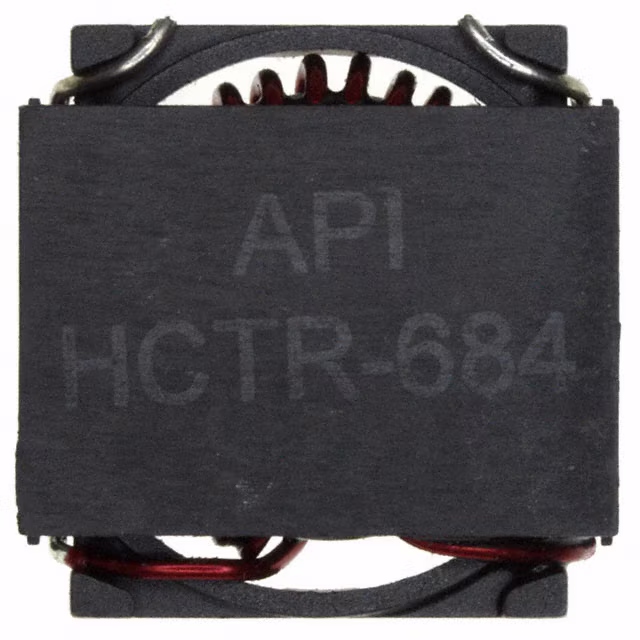

HCTR-684FIXED IND 29UH 6.57A 25 MOHM SMD |
3,221 | - |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 29 µH | ±25% | 6.57 A | - | Shielded | 25mOhm Max | 30 @ 100kHz | 16MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
2500R-28JFIXED IND 1MH 88MA 16.5 OHM TH |
2,540 | - |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±5% | 88 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
1025R-06KFIXED IND 270NH 975MA 160MOHM TH |
1,890 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 270 nH | ±10% | 975 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
