Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4924-821KFIXED IND 820NH 800MA 590MOHM SM |
4,480 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 800 mA | 800mA | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-102KFIXED IND 1UH 2.32A 70 MOHM SMD |
4,581 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 µH | ±10% | 2.32 A | 2.32A | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-122KFIXED IND 1.2UH 1.92A 100MOHM SM |
4,465 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.2 µH | ±10% | 1.92 A | 1.92A | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

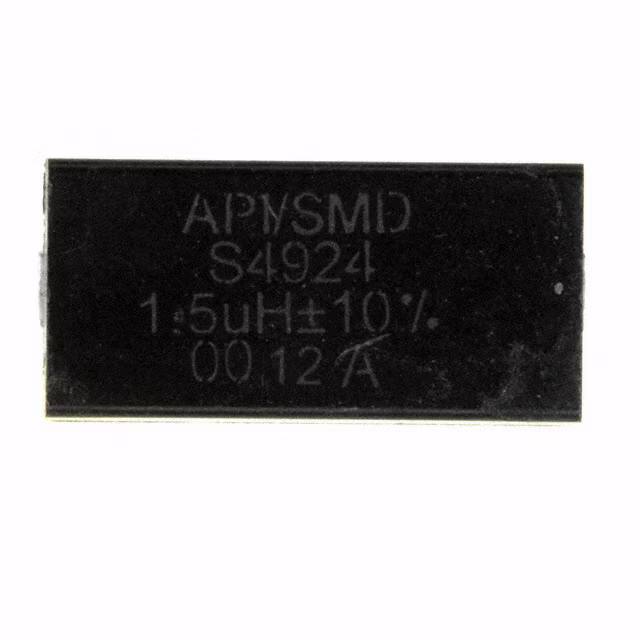

S4924-152KFIXED IND 1.5UH 1.78A 120MOHM SM |
3,583 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.5 µH | ±10% | 1.78 A | 1.78A | Shielded | 120mOhm Max | 44 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-182KFIXED IND 1.8UH 1.65A 140MOHM SM |
3,522 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.8 µH | ±10% | 1.65 A | 1.65A | Shielded | 140mOhm Max | 44 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-222KFIXED IND 2.2UH 1.42A 190MOHM SM |
1,861 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 1.42 A | 1.42A | Shielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-272KFIXED IND 2.7UH 1.16A 280MOHM SM |
1,738 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 2.7 µH | ±10% | 1.16 A | 1.16A | Shielded | 280mOhm Max | 44 @ 7.9MHz | 92MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-332KFIXED IND 3.3UH 1.045A 350 MOHM |
2,109 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 3.3 µH | ±10% | 1.045 A | 1.045A | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-392KFIXED IND 3.9UH 970MA 400MOHM SM |
4,331 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 3.9 µH | ±10% | 970 mA | 970mA | Shielded | 400mOhm Max | 44 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-472KFIXED IND 4.7UH 830MA 550MOHM SM |
2,329 | - |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 830 mA | 830mA | Shielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
