Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82472N6474M000SMT-INDUCTOR 7X7 400V 470 UH |
933 | - |
|
Datasheet | B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 390mA | Shielded | 2.6Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6824M000FIXED IND 820UH 260MA 5 OHM SMD |
865 |
1+：$1.02400 10+：$0.84160 100+：$0.69176 |
|
Datasheet | B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 260 mA | 300mA | Shielded | 5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6154M000SMT-INDUCTOR 7X7 400V 150 UH |
850 | - |
|
Datasheet | B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 640 mA | 720mA | Shielded | 860mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6105M000FIXED IND 1MH 250MA 5.5 OHM SMD |
641 |
1+：$1.02400 10+：$0.84160 100+：$0.69176 |
|
Datasheet | B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 250 mA | 270mA | Shielded | 5.5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82472P6152M000FIXED IND 1.5UH 3.4A 19 MOHM SMD |
809 |
1+：$1.21600 10+：$1.00000 25+：$0.92512 50+：$0.87232 100+：$0.82240 250+：$0.76086 500+：$0.71744 |
|
Datasheet | B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.4 A | 3A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82464A4152M000FIXED IND 1.5UH 6.5A 10 MOHM SMD |
700 | - |
|
Datasheet | B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.5 A | 9.8A | Unshielded | 10mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

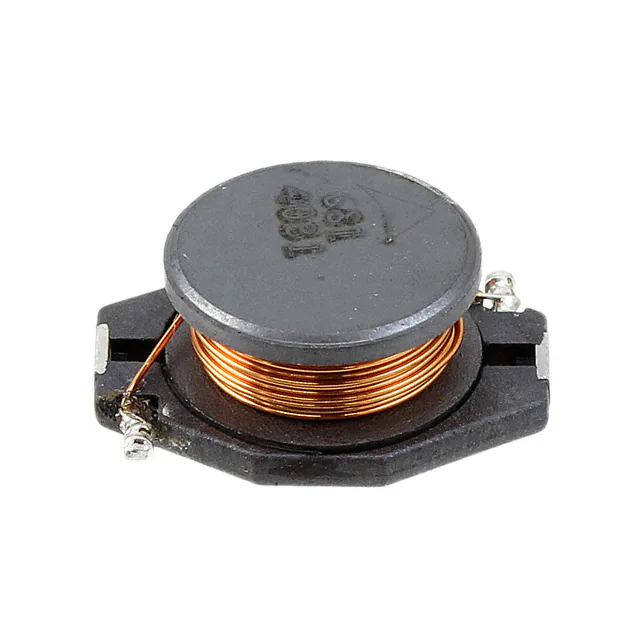

B82476B1684M100FIXED IND 680UH 430MA 1.6OHM SMD |
403 | - |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 430 mA | 400mA | Unshielded | 1.6Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82479A1105M000FIXED IND 1MH 560MA 1.8 OHM SMD |
240 | - |
|
Datasheet | B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
B82464A4222M000FIXED IND 2.2UH 5.7A 12 MOHM SMD |
583 |
1+：$1.03200 10+：$0.84960 25+：$0.78560 50+：$0.74080 100+：$0.69840 250+：$0.64611 |
|
Datasheet | B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.7 A | 8.4A | Unshielded | 12mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82476B1224M100FIXED IND 220UH 880MA 530 MOHM |
135 |
1+：$1.07200 10+：$0.88320 25+：$0.81696 50+：$0.77024 100+：$0.72624 |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 880 mA | 800mA | Unshielded | 530mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
