Fuseholders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
03400312ZFUSE HLDR CART 250V 20A PNL MNT |
228 | - |
|
Datasheet | 340 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Copper Alloy | Tin | - |
|
LSCR002FUSE BLOK BLT DWN 600V 800A CHAS |
209 | - |
|
Datasheet | LSCR | Bulk | Active | Chassis Mount | Custom | 800 A | 3/8" Stud Mounted Fuses | Bolt Down | Block | 1 | 600V | - | Bolt Down | Steel | - | - |
|
LPSC0001ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
742 | - |
|
Datasheet | POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 1 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|

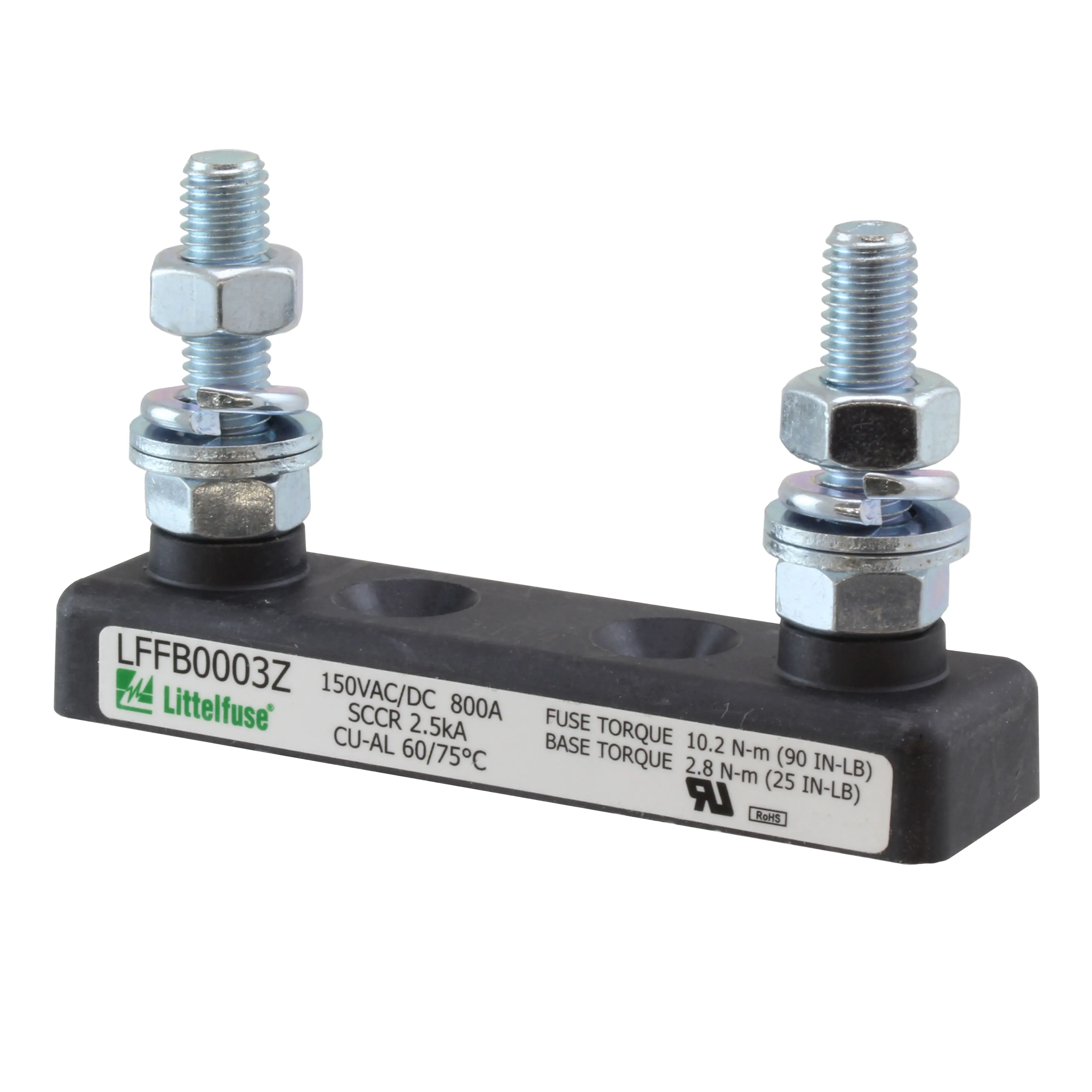

LFFB0003ZFUSE BLOK BLT DWN 150V 800A CHAS |
232 | - |
|
Datasheet | LFFB | Box | Active | Chassis Mount | 2.441" (62mm) Pitch | 800 A | Fuse Strips | Bolt Down | Block | 1 | 150V | - | Bolt Down | Steel | Zinc | - |
|
03400267ZFUSE HLDR CART 250V 30A PNL MNT |
528 |
1+：$74.90400 5+：$62.12000 10+：$57.28800 50+：$47.39360 100+：$45.34920 |
|
Datasheet | 340 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | - | - | - |
|
LFPXV0001ZFUSE HLDR 1500V 85MM PHOTOVO |
129 | - |
|
Datasheet | POWR-GARD® LFPXV | Box | Active | DIN Rail | 0.394" Dia x 3.346" L (10mm x 85mm) | 30 A | 10mm x 85mm | Cartridge | Holder | 1 | 1500V | Vertical | Box Lug | Copper Alloy | Zinc | - |
|

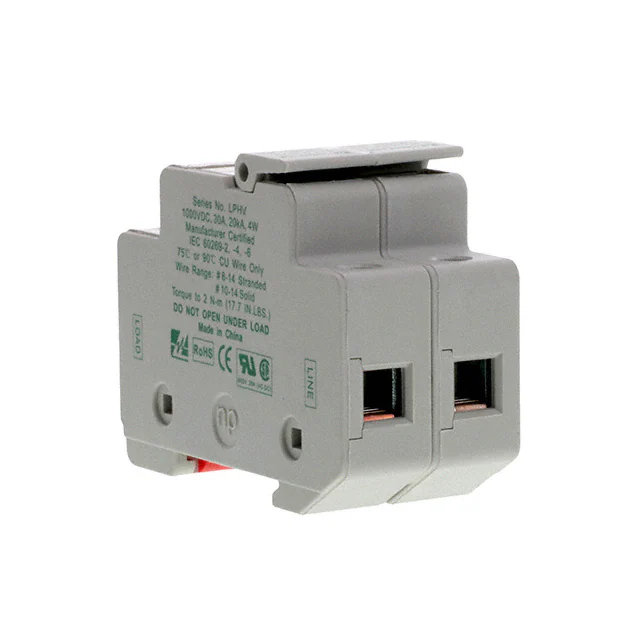

LPHV0002ZFUSE HLDR CART 1000V 30A DINRAIL |
2,887 | - |
|
Datasheet | LPHV | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 1000V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LSCR1011000V GENERAL PURPOSE FUSE STUD |
313 |
1+：$43.15200 6+：$35.04400 10+：$33.01920 50+：$27.33824 100+：$25.18368 250+：$22.57216 |
|
Datasheet | POWR-GARD® LSCR | Box | Active | Chassis Mount | Custom | 400 A | 1/4" Stud Mounted Fuses | Bolt Down | Block | 1 | 1000V | - | Bolt Down | Steel | - | - |
|
LPSM0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
59 |
1+：$64.06400 5+：$53.13760 10+：$49.00800 50+：$40.55696 100+：$37.34984 |
|
Datasheet | POWR-GARD® LPSM | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LPSC0002ZXIDFUSE HLDR CART 600V 30A DIN RAIL |
2,846 | - |
|
Datasheet | POWR-GARD® LPSC | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
